Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

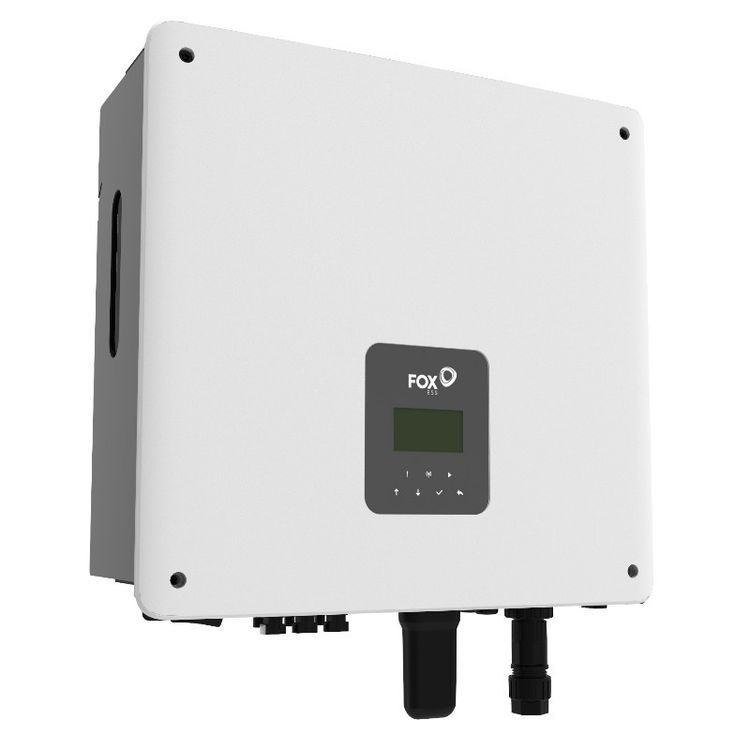

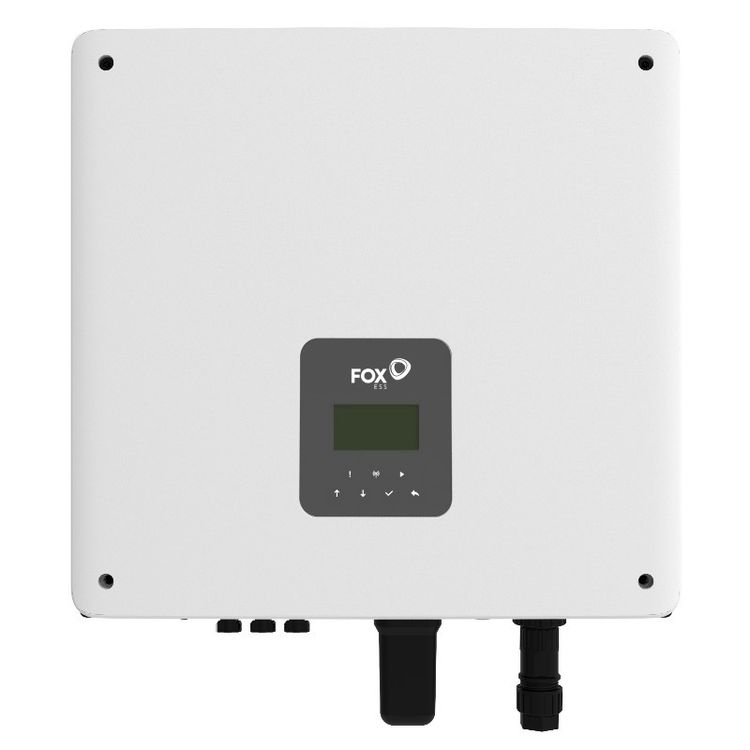

The Fox ESS H1 G2 3kW Single Phase Hybrid Inverter is an intelligent energy management solution for residential solar and battery storage systems. It converts DC electricity generated by solar panels into usable AC power while directing surplus energy to a compatible Fox ESS high-voltage LFP battery, ready to power the home when solar generation is insufficient or electricity is more expensive. With a rated AC output of 3,000W and support for solar arrays up to 6,000Wp, it can help households increase their use of renewable energy and reduce reliance on the grid.
Two independent MPPT trackers manage two solar panel strings separately, helping maintain efficient generation across panels with different orientations or levels of sunlight. A maximum efficiency of 97.01% helps minimise energy losses, while PV-to-battery charging efficiency reaches 98.5% and battery-to-AC discharge efficiency reaches 97%.
Several operating modes allow the system to be configured around different household requirements. Self-use mode prioritises solar electricity for local loads before charging the battery and exporting surplus power. Force time use mode supports scheduled charging and discharging, allowing compatible batteries to be charged during selected off-peak periods. Feed-in priority and backup modes provide additional flexibility for export-focused systems and emergency power applications.
System performance and energy flows can be viewed through the built-in LCD display, FoxCloud V2.0 smartphone app or web portal using Wi-Fi connectivity, with optional LAN and 4G monitoring also supported.
What’s In The Box: Fox ESS H1 G2 inverter, wall-mounting bracket, PV connectors & contacts, AC grid & EPS connectors, battery connectors & contacts, fixings, earth terminal, communication connector, CT with 10m cable, CT extension connector, RJ45 connector & quick installation guide.
Technical Specifications:
Monitoring module specification may vary, with LAN and 4G options sold separately. A compatible battery and correctly installed dedicated backup circuit are required to use the EPS function. Installation, commissioning and grid connection must be completed by a suitably qualified electrician in accordance with current regulations and distribution network requirements.
Code: H1-3.0-E-G2
