Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

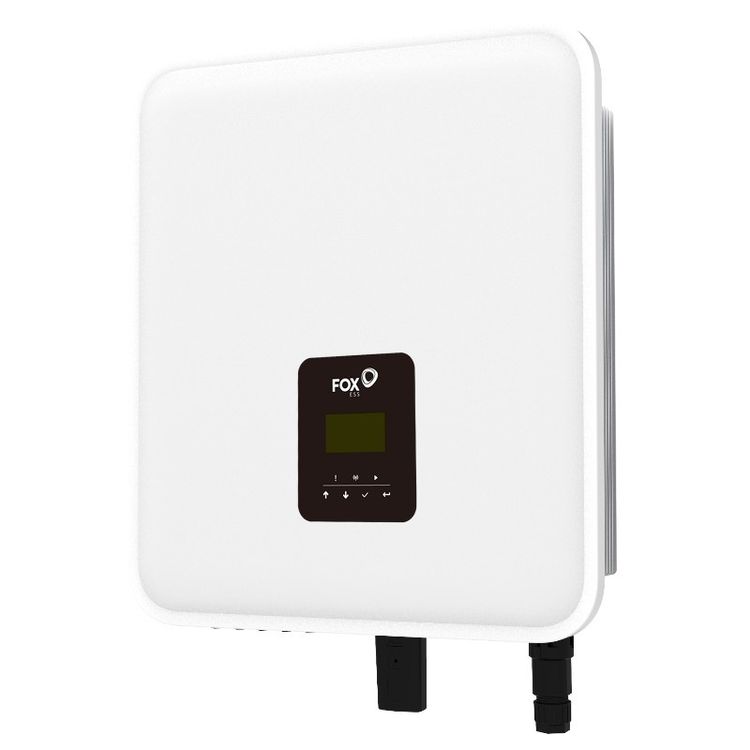

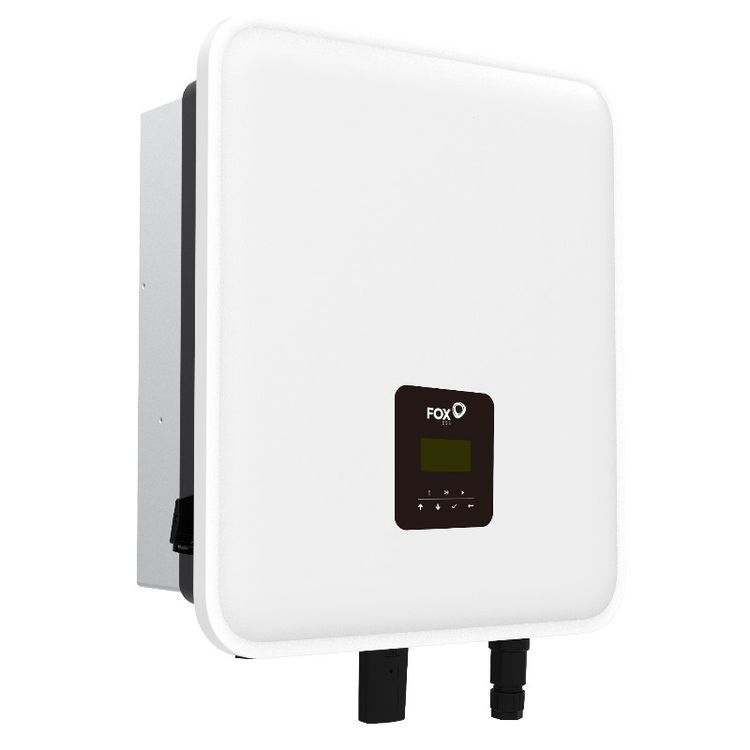

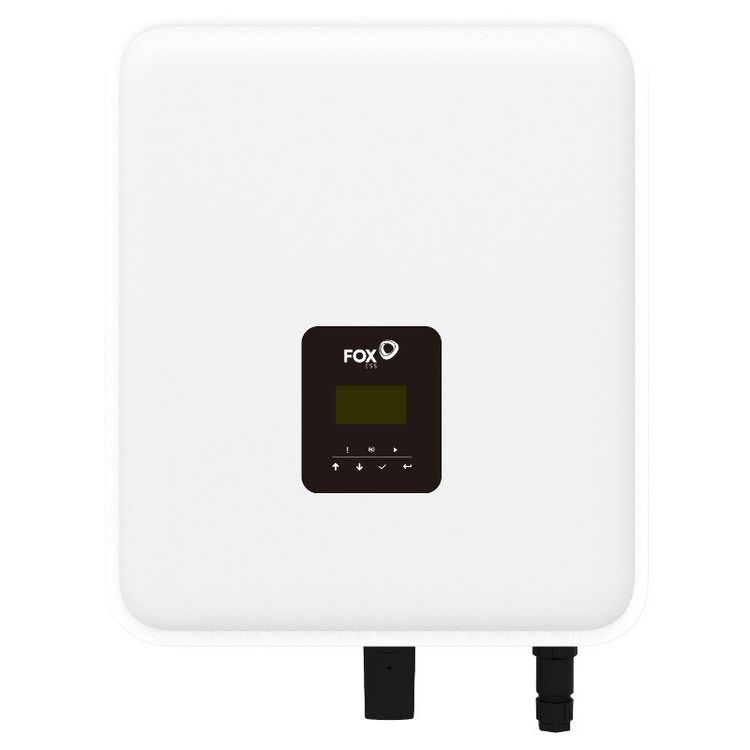

The Fox ESS KH 7kW Single-Phase Hybrid Inverter brings solar generation, battery storage and household electricity supply together in one energy management solution. Made for residential solar PV systems, the KH7 helps you use more of the electricity your panels generate by storing surplus energy in a compatible high-voltage battery for later use.
With a nominal AC output of 7,000VA, the KH7 supports solar arrays up to 15,000Wp and a maximum PV input power of 10,500W. Three independent MPPT trackers help optimise generation across separate panel strings, making it a practical choice for installations with different roof orientations. Maximum conversion efficiency reaches 97.8%, while PV-to-battery charging efficiency reaches 98.5%. The inverter supports compatible batteries operating between 85V and 480V, with charging and discharging currents of up to 50A.
Download the FoxCloud V2.0 app to monitor system performance remotely when the inverter is connected through a compatible communications module. An integrated LCD with touch controls also provides access to operating information on the unit.
What's In The Box: 1x inverter, 1x mounting bracket, 6x PV connectors (3 positive & 3 negative), 6x PV pin contacts (3 positive & 3 negative), 2x AC connectors (1 EPS & 1 grid), 6x expansion tubes & expansion screws, 1x earth terminal, 1x communication connector, 1x quick installation guide, 1x CT extension connector, 3x hexagonal screws, 2x battery connectors (1 positive & 1 negative), 2x battery pin contacts (1 positive & 1 negative), 1x CT with 10m cable, 1x RJ45.
Code: KH7
