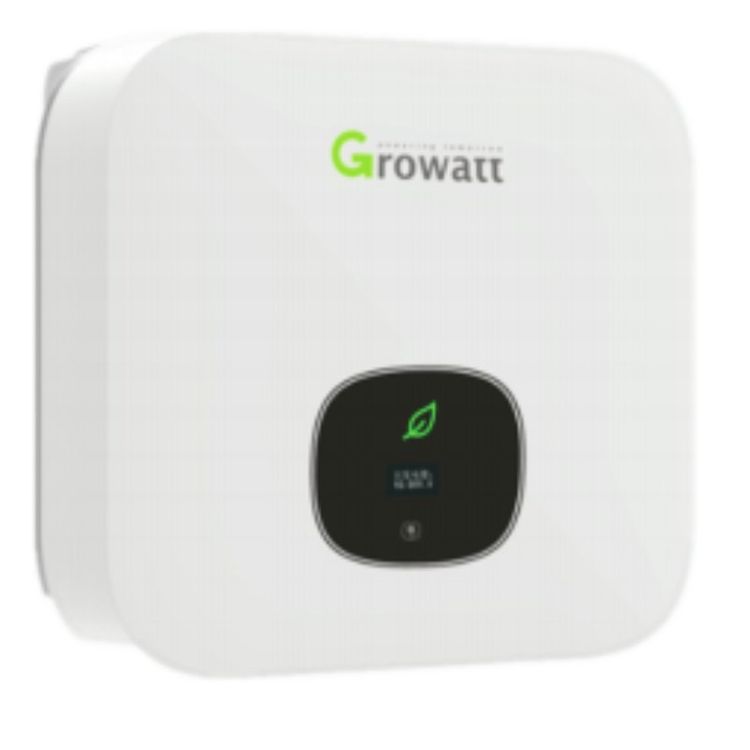

The Growatt MIC TL‑X series sets a new standard in residential solar inverters by combining advanced safety features, streamlined design, and reliable performance. Available in 2 kW, 3 kW, 3.3 kW, and expanded to include smaller variants like 1 kW and 1.5 kW, these inverters are ideal for modern UK rooftops seeking both safety and efficiency.
Enhanced Safety with AFCI & DC Switch
The built-in Arc‑Fault Circuit Interrupter (AFCI) detects dangerous electrical arcs—dramatically reducing the risk of fires—while the integrated DC isolator switch ensures safe maintenance and emergency shutoff.
High Efficiency & Accurate MPPT
Delivers a maximum efficiency of 97.6%, with 99.9% MPPT tracking accuracy—ensuring your solar array consistently operates at peak performance.
Flexible Voltage Input & Quick Start-Up
Broad DC voltage range and low start-up threshold (from 50–80 V) offer enhanced flexibility in string design and maximise energy harvest during low light.
Robust, Fanless Design
Featuring IP65-rated, transformerless enclosures with natural convection cooling, the TL‑X series offers silent, reliable performance with minimal maintenance.
Smart, Installer-Friendly Features
Touch-key operation, OLED/LED displays, and a compact, lightweight build (~6 kg) enable hassle-free one-person installation. Broad monitoring options include RS485, USB and optional Wi-Fi, GPRS, RF or LAN connectivity.
Generous Warranty Backing
Standard 10-year manufacturer warranty, underscoring Growatt’s commitment to quality and longevity.
AC Output: 2 kW
MPPT: 1; voltage range ~50–500 V
Efficiency: ~97.4%
Includes AFCI, DC switch, SPD protection (Type III), IP65
AC Output: 3 kW
Max DC Power: ~4.2 kW
Start‑Up Voltage: 80 V
Weight: ~6.2 kg; Dimensions 274 × 254 × 138 mm
Interface: OLED display, touch-key, RS485/USB, optional Wi-Fi, GPRS, RF, LAN
Safety: Integrated AFCI, DC switch, surge protection, IP65
Efficiency: 97.6% max; European ~97.1%
Shares core features with the 3 kW model: single MPPT, AFCI, DC isolator, high-efficiency, compact design, and comprehensive connectivity.
| Model | AC Output | Efficiency | MPPT | Highlights |
|---|---|---|---|---|
| MIC 2000 TL‑X | 2 kW | ~97.4% | 1 | Compact, safe, high-voltage flexibility |
| MIC 3000 TL‑X | 3 kW | 97.6% | 1 | AFCI, OLED display, rich communication options |
| MIC 3300 TL‑X | 3.3 kW | ~97.6% | 1 | Higher capacity, same build and features |
