SolaX X1-BOOST G4 Single Phase Inverter Inc. WiFi and AFCI

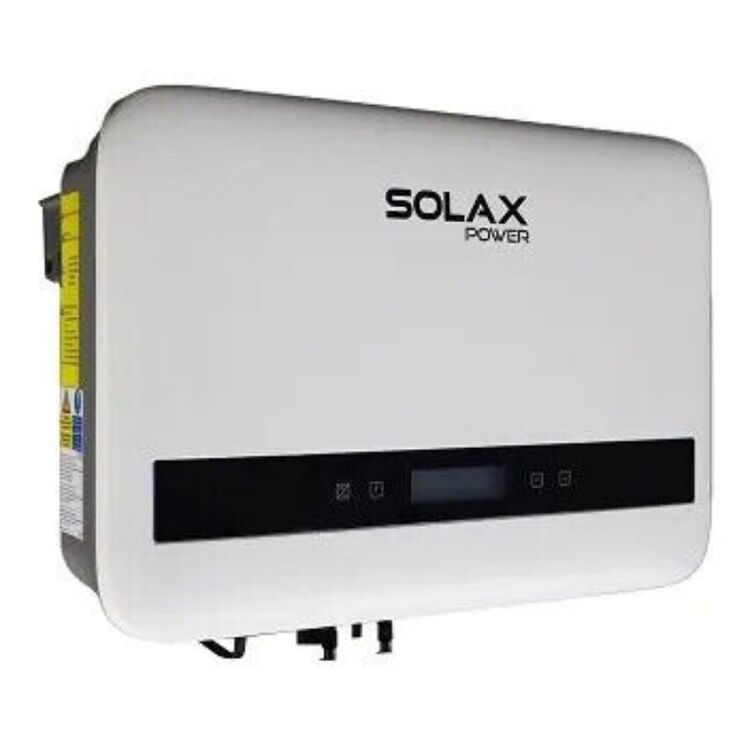

SolaX X1‑BOOST G4 3.0 kW Single‑Phase Inverter (incl. WiFi & AFCI)

A compact powerhouse built to deliver streamlined solar energy management with smart connectivity and safety at its core:

• Power & Performance
  Delivers a rated output of 3,000 W with up to 200% DC oversizing, enabling support for larger PV arrays for increased energy yield.

• Flexible Input Range & Efficiency
  Dual MPPT inputs working across 40–560 V, with a low start-up voltage of 50 V, ensuring robust performance across varying conditions. Efficiency peaks at 98%, making every ray count.

• Compact & Durable Design
  Measures 404 × 274 × 146 mm, weighs 11 kg, and features an IP66 rating—ideal for both indoor and outdoor settings.

• Smart Connectivity
  Built-in WiFi V3 (and optional LAN V3) allows real-time monitoring via the SolaX app or cloud. Supports AFCI (Arc Fault Circuit Interrupter) and Type II SPD, plus I‑V‑curve diagnostics for proactive system protection.

• Installation & Support
  Rated for quick installation with remote setup options and a 5-year standard warranty, upgradable to 10 years with registration.

SolaX X1‑BOOST G4 3.6 kW Single‑Phase Inverter (incl. WiFi & AFCI)

Designed for slightly higher solar demands, this model brings the same smart features with a boost in output capacity:

• Enhanced Power & Oversizing
  Provides 3,680 W of output, while still supporting 200% DC oversizing—perfect for slightly larger or future‑proof systems.

• Robust MPPT Performance
  Dual-track MPPT with 40–560 V range and 50 V start-up, maintaining high performance across shading or mismatch situations.

• Consistent Build Quality
  Shares the same IP66, fan‑less design and lightweight build (~11 kg) as the 3.0 kW model, ensuring silent and resilient operation.

• Smart Functionality
  Integration of WiFi, AFCI, SPD protection, and export control with data diagnostics keeps your system connected and secure.

SolaX X1‑BOOST G4 6.0 kW Single‑Phase Inverter (incl. WiFi & AFCI)

For high-demand or larger-scale installations, this model combines power and intelligence in one sleek package:

• High Output & Oversizing Capability
  Delivers 6,000 W output — and supports up to 200% oversizing, so your system can scale up without early limitations.

• Technical Excellence
  Dual MPPTs cover 40–560 V with a low 50 V start-up. The inverter hits up to 97.8–98% efficiency, ensuring top-tier energy conversion.

• Sturdy & Compact
  ICer IP66‑rated housing, weighs 11–15 kg (depending on source), and the compact 341.5 × 430 × 143 mm or 404 × 274 × 146 mm form factor fits most installations.

• Advanced Monitoring & Protection
  Seamless WiFi V3 connectivity, SPD protection, AFCI support, and export limitation via meter provide exceptional safety and control.

• Smart Integration & Warranty
  Supports EV chargers, heat pumps, parallel operation, and cloud maintenance. Comes with 5 years warranty, extendable free to 10 years.

Summary Table

Each of the SolaX X1‑BOOST G4 inverters offers a powerful mix of high efficiency, flexible input, smart connectivity, and advanced safety features, making them ideal choices for modern residential solar setups—from modest systems to more demanding installations.
