Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

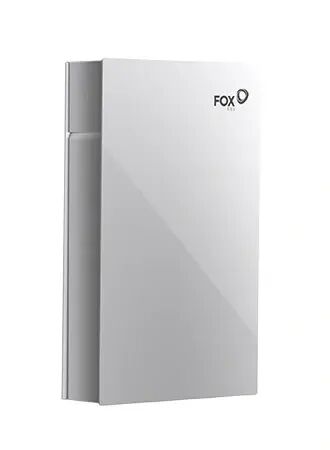

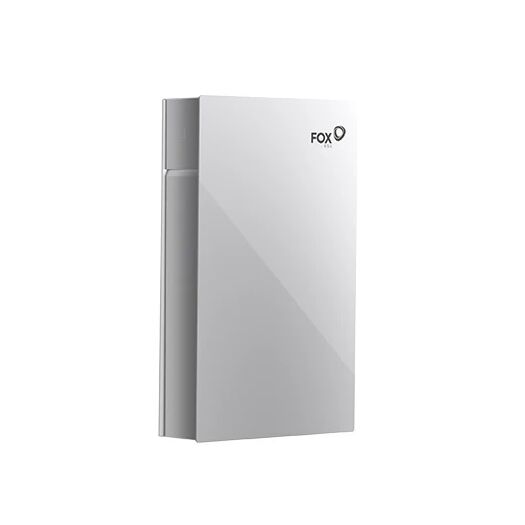

The Fox ESS EVO 10-10-H is a fully integrated, all-in-one energy storage system combining a 10kW hybrid inverter, battery charger and 10.24kWh lithium iron phosphate battery within a single streamlined unit. Developed to simplify installation, the system is perfect for residential properties seeking greater control over solar generation, electricity use and backup power. It stores surplus solar energy for use when generation is low or grid electricity is more expensive, helping households increase self-consumption and reduce their reliance on imported power.
The EVO 10-10-H delivers 10kW of rated AC output and supports a maximum PV array capacity of 20kWp. Three independent MPPT trackers allow the system to manage separate solar arrays efficiently, making it particularly suitable for installations with panels positioned across different roof orientations or operating under varying conditions. Maximum conversion efficiency reaches 97.6%, while PV-to-battery charging efficiency is rated at up to 97.3%.
During a power cut, the integrated EPS function can provide backup electricity with a switching time of less than 4ms. The system supplies up to 10kVA of continuous EPS output and can deliver 200% overload capacity - up to 20kVA - for 10 seconds, helping it accommodate demanding short-duration start-up loads. Up to three compatible EVO units can also operate in parallel where greater power and storage capacity are required.
Download the FoxCloud V2.0 app to monitor system performance remotely, with additional information available through the website and the unit’s integrated LED and LCD interfaces.
Code: FE-EVO10-10H
