Engineered for both new builds and existing homes, Vaillant heat pumps combine cutting-edge technology and environmental responsibility, helping homeowners invest in sustainable comfort without compromising on efficiency or design

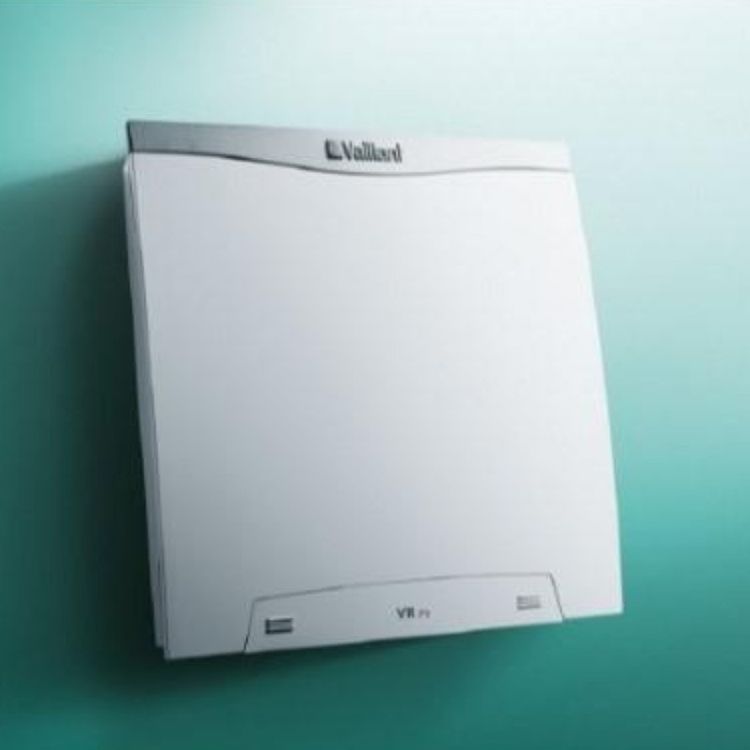

The Vaillant VR 70 is an eBUS wiring centre that expands the control capabilities of compatible Vaillant heating systems. Featuring configurable inputs and outputs, the VR 70 provides a central connection point for heating-system components, including circulation pumps that move water around the system, motorised mixing valves that regulate flow temperature, and sensors that monitor system temperatures.
When used as the main wiring centre with a Vaillant VRC 700 system control, the Vaillant VR 70 can manage an installation with up to two heating zones. For three-zone systems, the Vaillant VR 71 should be selected instead.
The VR 70 can also be used as a secondary wiring centre in a wired Vaillant sensoCOMFORT installation. In this configuration, a VR 71 is required as the primary module to control the first three zones, while the VR 70 extends the system to accommodate fourth and fifth zones, where supported by the system configuration. It is not suitable for expanding a sensoCOMFORT RF system beyond three zones.
Suitable for a fixed, wall-mounted installation, the module communicates with the system controller through Vaillant’s eBUS interface. Individually addressable modules support correct identification within an expanded system, while configurable connections allow the wiring centre to be adapted to the selected hydraulic arrangement.
What’s In The Box: 1x Vaillant VR 70 wiring centre, 2x Vaillant VR 10 temperature sensors, installation accessories (bolts and wall plugs) & product documentation.
Technical Specifications:
Installation must be completed by a qualified professional. Check the wiring centre is suitable for your heating system before purchase.
Code: 20184844
