Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

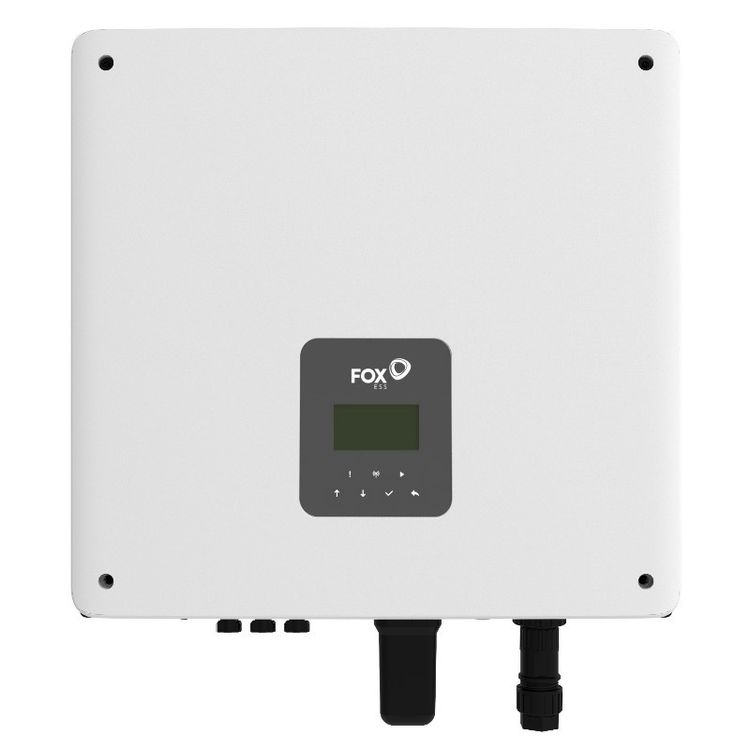

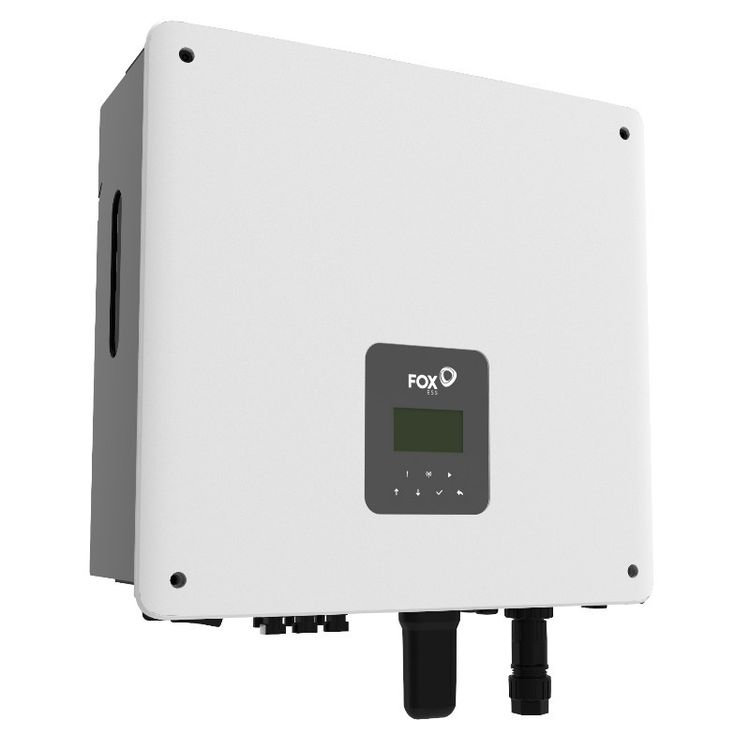

The Fox ESS H1 G2 3.68kW Single-Phase Hybrid Inverter enables households to use more of the solar electricity they generate by converting it for immediate use and storing surplus energy in a compatible battery for later. Delivering 3,680W of rated AC output, it allows surplus solar energy to be stored for use after sunset or when household electricity demand rises.
The H1-3.7-E-G2 supports solar arrays up to 7,400Wp and a maximum combined DC input power of 7,400W. Two independent MPPT trackers, each supporting one solar string, help optimise generation across different roof orientations. Maximum conversion efficiency reaches 97.08%, with PV-to-battery charging efficiency of up to 98.5%. Compatible high-voltage LFP batteries operating between 80V and 480V are supported, with charging and discharging currents of up to 40A.
Download the FoxCloud V2.0 app to monitor system performance remotely through a compatible communications module. An integrated LCD also provides operating information directly on the inverter.
What's In The Box: 1x inverter, 1x mounting bracket, 4x PV connectors (2 positive & 2 negative), 4x PV pin contacts (2 positive & 2 negative), 2x AC connectors (1 EPS & 1 grid), 2x battery connectors (1 positive & 1 negative), 2x battery pin contacts (1 positive & 1 negative), 5x expansion tubes & expansion screws, 1x earth terminal, 1x communication connector, 1x quick installation guide, 1x CT with 10m cable, 1x CT extension connector, 1x RJ45.
Code: H1-3.7-E-G2
