Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

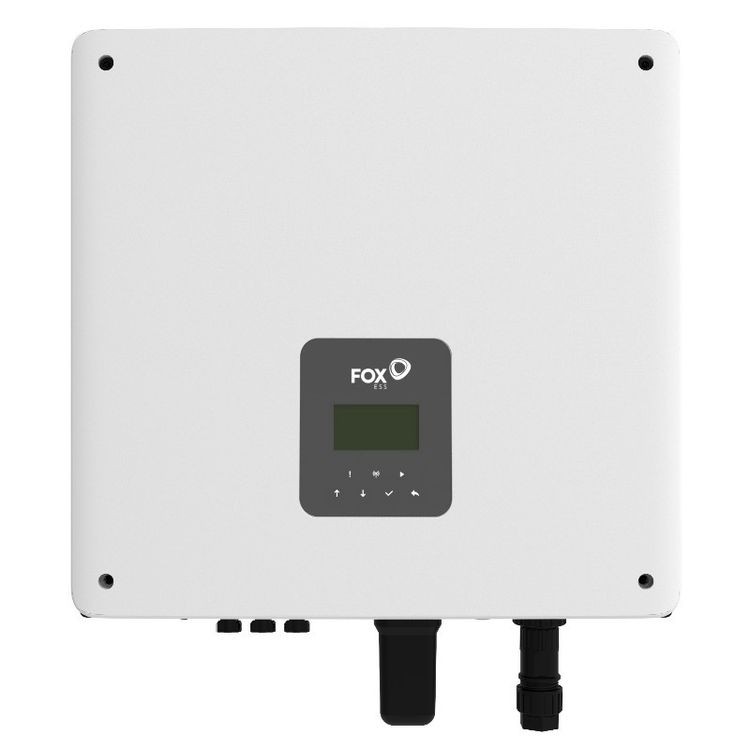

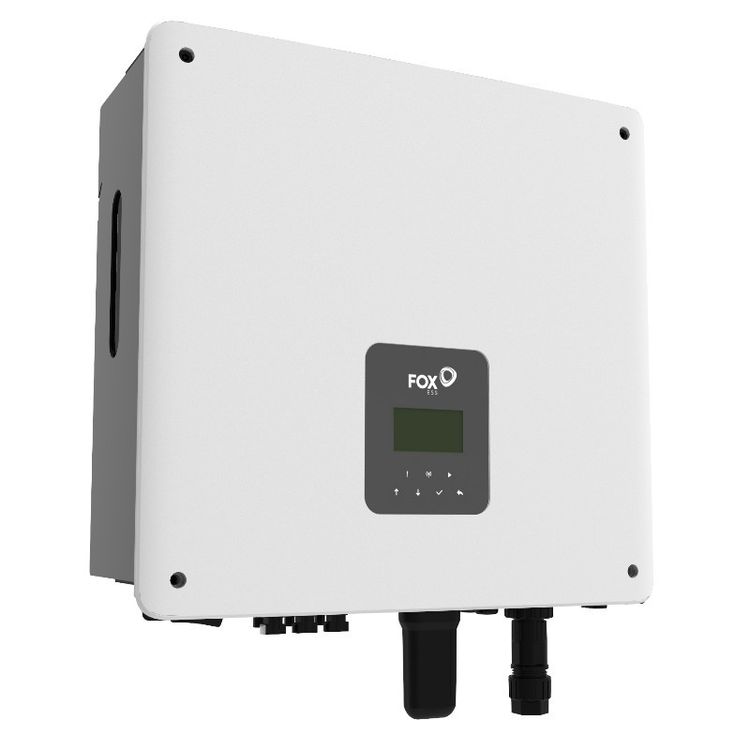

The Fox ESS H1 G2 5kW Single-Phase Hybrid Inverter is a flexible energy-management solution designed for residential solar PV and battery-storage systems. Delivering 5,000W of rated AC output, it intelligently distributes solar energy between household loads, a compatible high-voltage battery and the electricity grid. By storing surplus solar energy for use after sunset or during peak-rate periods, it helps you make more of every unit your panels generate, draw less electricity from the grid and gain greater control over your household energy costs.
Compatible with Fox ESS high-voltage LFP batteries operating between 80V and 480V, the inverter supports a maximum charging and discharging current of 40A. Its operating modes include self-use, feed-in priority, force time use and backup, allowing the system to be configured around household demand, electricity tariffs and energy-storage priorities.
When installed with a compatible battery and a correctly configured essential-load circuit, the integrated EPS output can supply up to 5,000VA during a power cut. It also provides 6,000VA of peak apparent power for up to 60 seconds and a transfer time of less than 10 milliseconds, helping supported appliances continue operating with minimal interruption.
Download the FoxCloud app to monitor system performance remotely from your smartphone, or access detailed information through the web portal and built-in LCD.
What’s In The Box: 1x Fox ESS H1 G2 inverter, 1x wall-mounting bracket, 2x positive and 2x negative PV connectors, 2x positive and 2x negative PV pin contacts, 2x AC connectors (1x grid and 1x EPS), 1x positive and 1x negative battery connector, 1x positive and 1x negative battery pin contact, 5x expansion tubes and screws, 1x earth terminal, 1x communication connector, 1x quick installation guide, 1x CT with 10m cable, 1x CT extension connector, 1x RJ45 connector.
Code: H1-5.0-E-G2
