Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

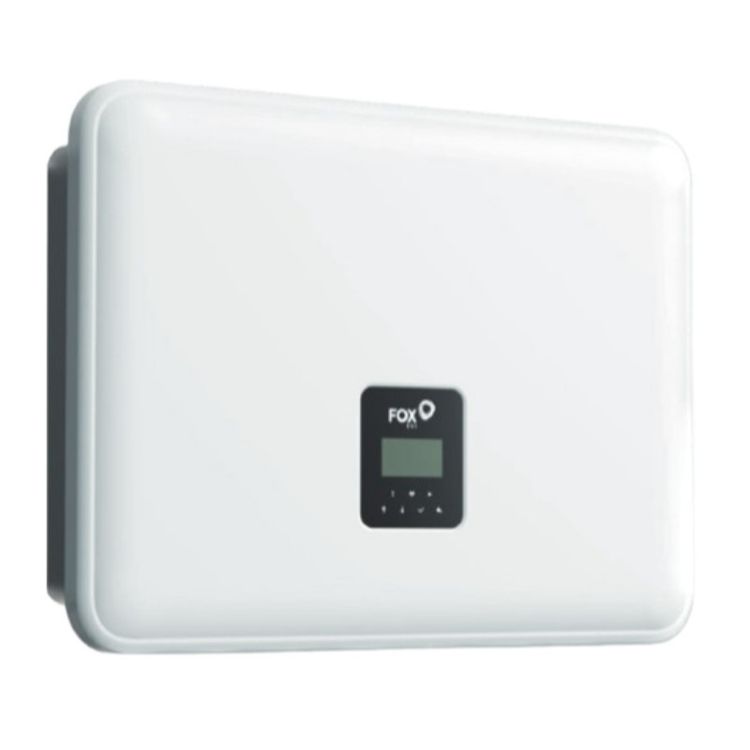

The Fox ESS H3 Smart 12kW Three-Phase Hybrid Inverter is an intelligent energy management solution for larger residential and small commercial solar and battery storage systems. It converts DC electricity generated by solar panels into usable three-phase AC power while managing the charging and discharging of a compatible high-voltage LFP battery. With a nominal AC output of 12kW and support for solar arrays up to 24kWp, it helps properties use more renewable electricity and reduces reliance on the grid.
Three independent MPPT trackers manage three solar panel strings separately, supporting installations with different panel orientations or varying levels of sunlight. The inverter accepts up to 22.5kW of DC input and operates across a wide 120V to 950V MPPT range. A maximum conversion efficiency of 97.9% and MPPT efficiency of 99.9% help minimise energy losses and maximise the available solar yield.
Self-use mode prioritises generated solar electricity for local loads before charging the connected battery and exporting surplus power. Feed-in priority mode supports export-focused installations, while configurable charging periods allow the battery to charge from the grid at selected times. Peak shaving can also limit grid import by using stored battery energy when property demand exceeds a predetermined level.
The H3 Smart can adapt its output to uneven demand across the three phases when correctly configured with its electricity meter. This allows each phase to supply an appropriate amount of power based on the connected loads, supporting properties where electrical demand is not evenly distributed.
What’s In The Box: Fox ESS H3 Smart 12kW inverter, wall-mounting bracket, 3x positive & 3x negative PV connectors, 3x positive & 3x negative PV pin contacts, AC connector, expansion screws & tubes, earth terminal, communication connector, three-phase meter rated below 80A, 3x hexagonal screws, positive & negative battery connectors, positive & negative battery pin contacts, 4x Ethernet cable terminals, antenna & quick installation guide.
Technical Specifications:
A compatible battery and correctly installed dedicated backup circuit are required to use the EPS function. System design, installation, commissioning and grid connection must be completed by suitably qualified professionals in accordance with current regulations, network requirements and Fox ESS installation instructions
Code: H3-12.0-Smart
