Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

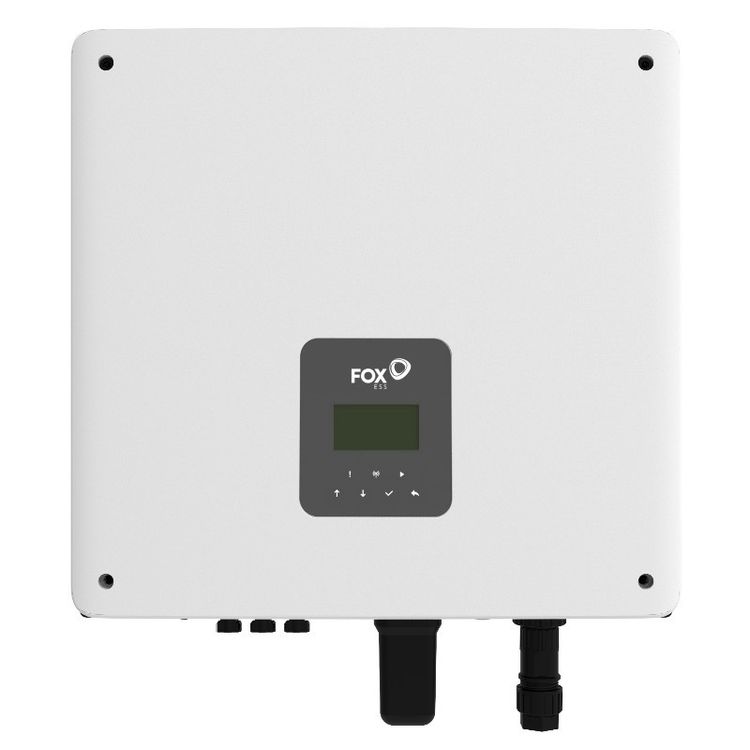

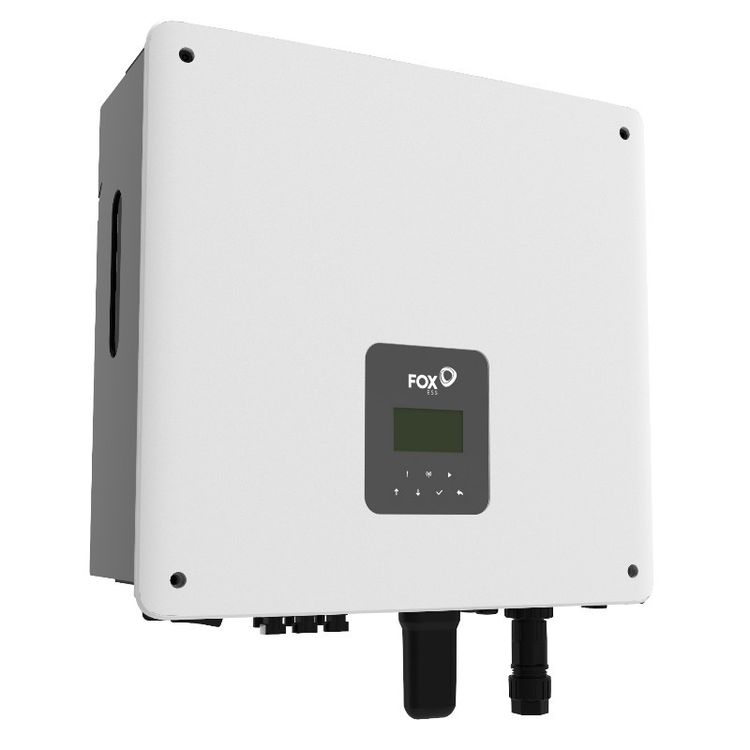

The Fox ESS H1 G2 6kW Single-Phase Hybrid Inverter converts electricity from solar panels into power for appliances and equipment in your home or business. Surplus solar electricity can be exported to the grid or stored in compatible Fox ESS high-voltage batteries for use after sunset or when your panels are producing less power.
The unit delivers 6,000W of rated AC output and supports solar arrays up to 12,000Wp, with a maximum combined DC input power of 12,000W. Two independent MPPT trackers, each supporting one solar string, provide flexibility for panels installed on different roof orientations. Maximum efficiency reaches 97.08%, while PV-to-battery charging efficiency reaches 98.5% at full load. The battery connection supports compatible LFP systems within an 80-480V operating range, with charging and discharging currents of up to 40A.
An LCD display shows operating information directly on the inverter, while FoxCloud V2.0 supports remote monitoring through an app or web portal with suitable connectivity. With a compatible battery and correctly installed backup circuits, the EPS output provides up to 6,000VA during a power cut, with a peak rating of 7,200VA for 60 seconds.
What’s In The Box: 1x Inverter, 1x Mounting Bracket, 4x PV Connectors (2x Positive, 2x Negative), 4x PV Pin Contacts (2x Positive, 2x Negative), 2x AC Connectors (1x EPS, 1x Grid), 2x Battery Connectors (1x Positive, 1x Negative), 2x Battery Pin Contacts (1x Positive, 1x Negative), 5x Expansion Tubes, 5x Expansion Screws, 1x Earth Terminal, 1x Communication Connector, 1x Quick Installation Guide, 1x CT With 10m Cable, 1x CT Extension Connector, 1x RJ45 Connector.
Code: H1-6.0-E-G2
