Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

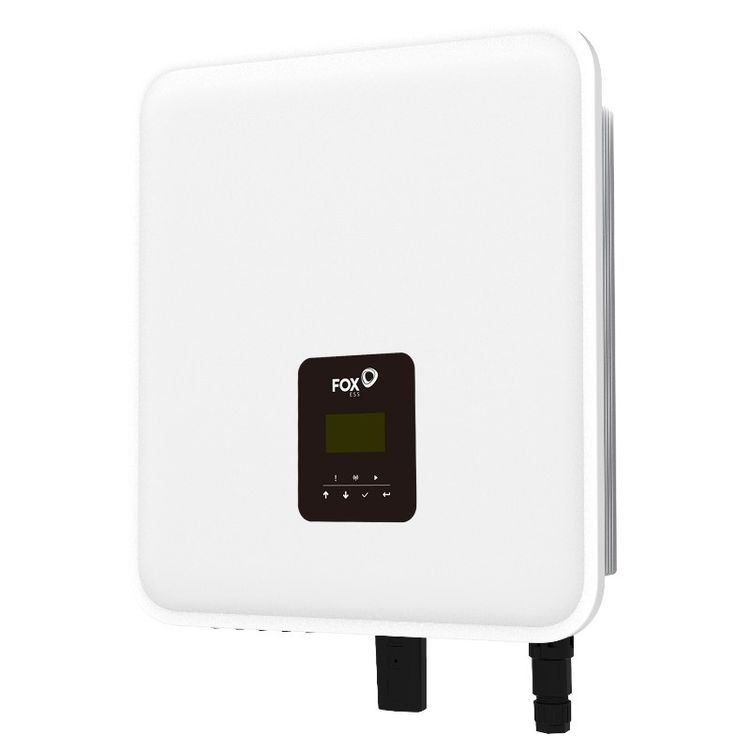

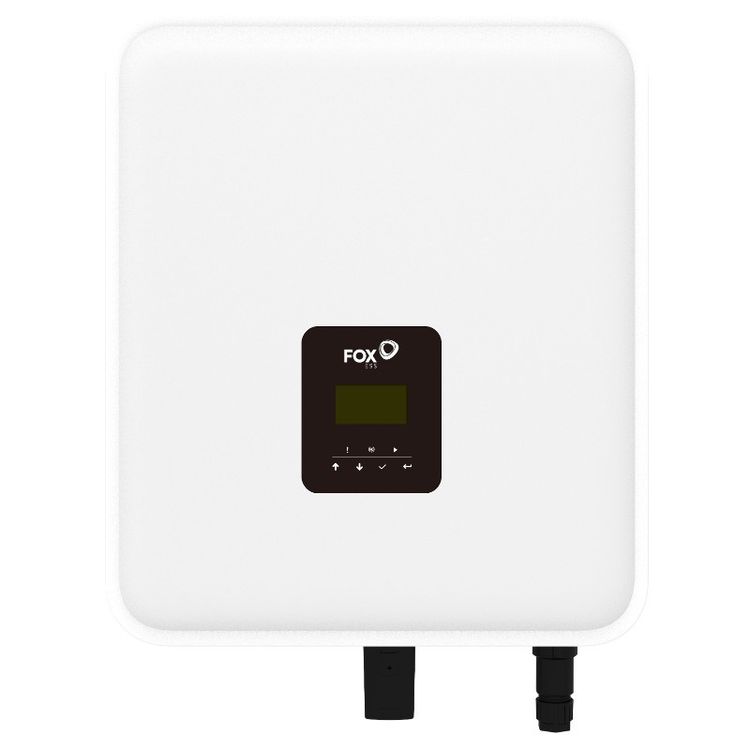

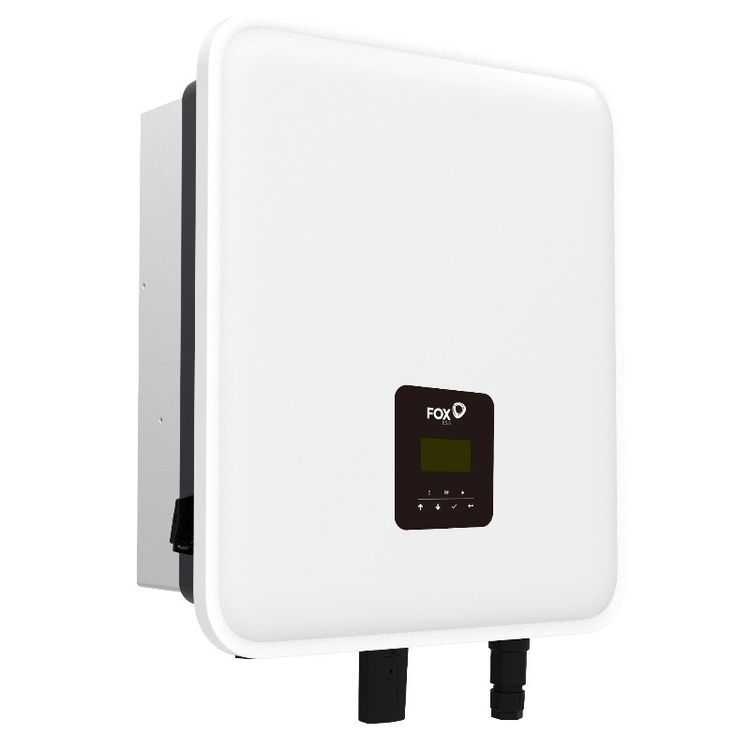

The Fox ESS KH 9kW Single-Phase Hybrid Inverter combines solar power conversion and compatible battery storage to help households make better use of their renewable energy. Made for residential solar PV systems, the KH9 allows surplus generation to be stored in a high-voltage battery for use when solar production falls. Self-use and feed-in priority modes, together with scheduled battery charging, give you flexibility to manage electricity around household demand.
Delivering 9,000VA of nominal AC output, the KH9 supports solar arrays up to 18,000Wp and a maximum PV input power of 13,500W. Four independent MPPT trackers optimise generation across separate panel strings, providing greater flexibility for installations spanning different roof orientations. Maximum conversion efficiency reaches 97.8%, with PV-to-battery charging efficiency of up to 98.5%. Compatible batteries operating between 85V and 480V are supported, with charging and discharging currents of up to 50A.
Download the FoxCloud V2.0 app to monitor system performance remotely through a compatible communications module. An integrated LCD with touch controls also provides access to operating information directly on the inverter.
What's In The Box: 1x inverter, 1x mounting bracket, 8x PV connectors (4 positive & 4 negative), 8x PV pin contacts (4 positive & 4 negative), 2x AC connectors (1 EPS & 1 grid), 6x expansion tubes & expansion screws, 1x earth terminal, 1x communication connector, 1x quick installation guide, 1x CT extension connector, 3x hexagonal screws, 2x battery connectors (1 positive & 1 negative), 2x battery pin contacts (1 positive & 1 negative), 1x CT with 10m cable, 1x RJ45.
Code: KH9
