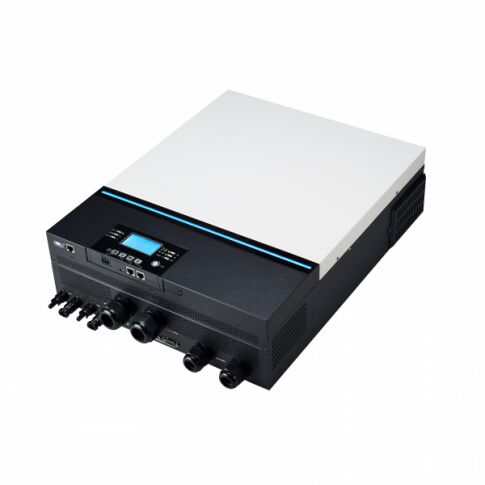

Iconica Max 11000W Hybrid Inverter With Combined 11000W Dual-Input Solar MPPT Controller, 150A Solar Charge Current & 150A Charger

The Photonic Universe Iconica MAX 11000W 48V Hybrid Inverter is a high-performance, all-in-one power solution that combines an 11kW pure sine wave inverter, a dual-input 150A MPPT solar charge controller, and an ultra-powerful 150A mains battery charger in one advanced unit. Built for large homes, commercial facilities, workshops, and industrial sites, it delivers clean, reliable AC power where mains electricity is unstable, expensive, or unavailable.

A standout feature of this model is its ability to power appliances directly from solar panels without requiring a battery bank. This maximises efficiency, reduces system costs, and offers flexible system design. With dual MPPT trackers, support for large solar arrays, and expansion up to 66kW, this inverter is ideal for users building powerful, future-proof energy systems.

Power & Charging Functions

• 11,000W Pure Sine Wave Inverter: Converts 48V DC into 230V AC mains electricity for demanding appliances such as fridges, microwaves, pumps, IT hardware, lighting, and power tools. Provides 11kW continuous output with a 22,000VA surge capacity for motor-driven equipment.
• Dual 150A MPPT Solar Charge Controllers (up to 11kW input): Two independent 5.5kW inputs allow separate solar arrays with different orientations or conditions. Operates at up to 98% efficiency and includes full safety protection against overcharge, overheating, and reverse current.
• 150A Smart Battery Charger: Delivers exceptionally fast, safe, multi-stage charging from mains or a generator, with full overcharge protection. Capable of up to 150A for large battery banks.
• Battery-free operation: Powers AC loads directly from solar input during the day, even without batteries. If batteries are connected, surplus solar energy charges them simultaneously.
• UPS function: Provides uninterrupted power supply, switching seamlessly to keep appliances running during grid failures.

Advanced Features

• Parallel & 3-phase expansion: Connect up to 5 additional inverters (6 total) for system capacity up to 66kW. Supports three-phase operation, ideal for industrial machinery and large commercial systems.
• Output source priority: Choose whether solar, battery, mains, or generator takes precedence for powering loads.
• Battery charging priority: Select solar-only, solar + mains, or mains-only charging depending on system needs.
• Extensive customisation: Adjust AC input range, battery type, charging currents, disconnect/reconnect voltages, charging stages, equalisation settings, overload bypass, auto-restart, power-saving modes, audible alarms, and LCD backlight.
• Removable illuminated LCD display: Shows detailed system data (voltages, frequency, battery levels, load %, charging current). Can be detached and mounted up to 20m away with an RJ45 cable (not included).
• Customisable RGB light bar: Programmable LED strip displays system status, charge levels, or energy source at a glance.
• Built-in Wi-Fi & communications: Supplied with PC software and USB cable. Advanced logging allows data export to PDF/Excel. Built-in Wi-Fi and optional online portal access enable app monitoring, email/push notifications, and remote system control.
• Generator auto-start: Dry-contact terminals trigger a compatible generator when battery voltage falls below a set threshold.
• Smart cooling & auto restart: Predictive fan logic controls 1, 2, or 3 variable-speed fans to prevent overheating. Automatic restart restores operation after overload or thermal shutdown.

Battery Compatibility: Compatible with 48V flooded, AGM, and GEL lead-acid batteries, plus Lithium batteries with correct settings (consult your supplier for Lithium configuration). Includes pre-defined charging programmes and a fully customisable option for other 48V battery types.

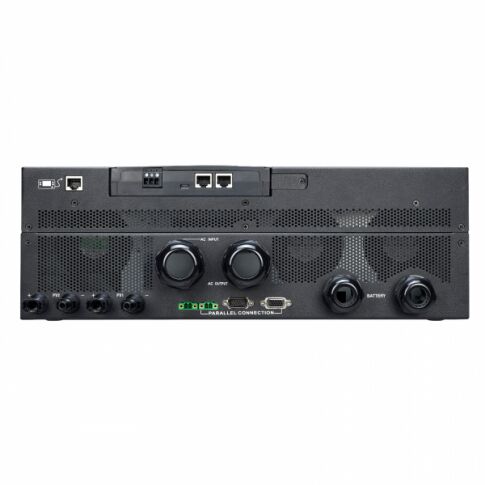

What's In The Box: 1x hybrid inverter unit, 1x manual, 1x software CD, 1x RS-232 cable, 1x parallel communication cable, 1x current sharing cable, 1x DC fuse, 4x cable glands, 2x sets of PV connectors.

• High-capacity 11kW inverter with 22kVA surge capability
• Dual MPPT solar inputs (2x 5.5kW) for flexible array design
• 150A mains charger: Extremely powerful, safe & fast charging
• Runs AC loads directly from solar without batteries
• UPS functionality: Seamless backup during grid outages
• Expandable up to 66kW & configurable for 3-phase systems
• Removable LCD display & RGB light bar for instant status monitoring
• Built-in Wi-Fi, app control & PC software with data export
• Generator auto-start & intelligent multi-fan cooling
• Ideal for large homes, workshops, commercial sites & industrial applications

Inverter Specifications

• Nominal battery voltage: 48V
• Continuous power output: 11000W/11000VA (220-240V AC)
• Surge power: 22000VA
• Output frequency: 50/60Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 5500W per input (11000W total)
• Maximum solar input current: 18A per input
• Maximum open circuit solar input voltage: 500V (open circuit)
• PV start up voltage: 80V +/- 5V
• MPPT solar operating voltage: 90V - 450V
• Maximum solar charging current: 150A
• Maximum mains AC charging current: 150A
• Maximum combined charging current: 150A
• Peak efficiency: 93%
• Operating temperature: -10°C to 50°C
• Supplied with solar connectors, cable glands, PC connection cable & PC software CD
• Size: 147.4mm x 432.5mm x 553.6mm
• Weight: 18.4kg

Code: IC-MX11000-48
