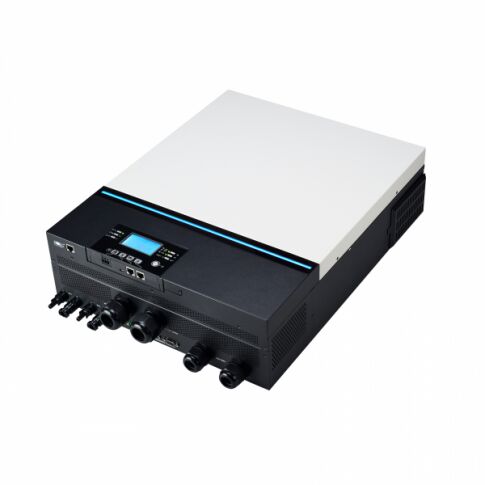

Iconica Max 8000W 48V Hybrid Pure Sine Wave Inverter With WiFi Monitoring, 120A Solar Charger & 120A Mains Charger

The Photonic Universe Iconica MAX 8000W 48V Hybrid Inverter is a high-performance, all-in-one energy solution that combines an 8kW pure sine wave inverter, a dual-input 120A MPPT solar charge controller, and a powerful 120A mains battery charger in one compact unit. Built for large homes, commercial premises, workshops, and off-grid installations, it delivers clean, reliable AC power where mains electricity is unstable, expensive, or unavailable.

A unique feature of this model is its ability to power appliances directly from solar panels without requiring a battery bank. This maximises efficiency, reduces costs, and allows greater design flexibility. With expansion up to 48kW, three-phase capability, and an array of smart features, the Iconica MAX 8000W is ideal for demanding off-grid and backup applications.

Power & Charging Functions

• 8000W Pure Sine Wave Inverter: Converts 48V DC into 230V AC mains electricity to run appliances such as fridges, microwaves, pumps, TVs, IT equipment, power tools, and lighting. Provides 8kW continuous output with a strong 16kVA surge capacity for motor-driven loads.
• Dual 120A MPPT Solar Charge Controllers (2 × 4kW inputs, total 8kW): Two independent solar inputs allow flexible array configurations with different panel types or orientations. Operates at up to 98% efficiency, regulating input safely and protecting against reverse current, overcharge, and overheating.
• 120A Smart Battery Charger: Delivers ultra-fast, safe, multi-stage charging from mains or generator, with full overcharge protection and unattended operation.
• Battery-free operation: Runs AC loads directly from solar during the day. If batteries are present, surplus solar power is automatically diverted to charging.
• UPS function: Provides uninterrupted power supply, seamlessly switching to backup mode to keep appliances running during grid outages.

Advanced Features

• Parallel & three-phase expansion: Connect up to five additional units (six total) for a system capacity of 48kW. Supports three-phase configuration, ideal for industrial machinery and large installations.
• Output source priority: Choose whether solar, battery, mains, or generator power is prioritised for supplying loads.
• Battery charging priority: Select solar-only, solar + mains, or mains-only charging.
• Extensive customisation: Adjust AC input range, battery type, charging currents, disconnect/reconnect voltages, charging stages, timer functions, equalisation, overload bypass, alarms, auto-restart behaviour, power-saving mode, and backlight.
• Illuminated removable LCD display: Clear 5" screen shows detailed information including voltages, frequency, battery percentage, load %, charge/discharge currents, and energy history (daily, monthly, yearly). Can be detached and installed up to 20m away (RJ45 cable required, not included).
• RGB light bar: Programmable LED strip provides at-a-glance system status, such as battery charge level, energy source, and charging state.
• Advanced connectivity: Supplied with PC software and USB cable. Data logs can be exported to PDF/Excel. Built-in Wi-Fi enables mobile app monitoring; optional Wi-Fi kits unlock remote portal access with push/email alerts.
• Generator auto-start: Built-in dry contacts trigger a compatible generator when batteries fall below a set voltage.
• Smart cooling & auto restart: Predictive fan logic engages 1, 2, or 3 variable-speed fans to prevent overheating. Auto-restart ensures loads reconnect safely once normal conditions are restored.

Battery Compatibility:​ Compatible with 48V flooded, AGM, and GEL lead-acid batteries, plus Lithium batteries with appropriate settings (consult your supplier for Lithium configuration). Includes multiple pre-set charging programmes and a user-defined mode for custom battery types.

What's In The Box: 1x hybrid inverter unit, 1x manual, 1x software CD, 1x RS-232 cable, 1x parallel communication cable, 1x current sharing cable, 1x DC fuse, 4x cable glands, 2x sets of PV connectors.

• 8kW pure sine wave inverter with 16kVA surge capacity
• Dual 120A MPPT solar controllers (2x 4kW) for flexible solar array design
• 120A mains charger: Ultra-fast charging for large battery banks
• Battery-free solar operation for maximum efficiency
• UPS functionality: Seamless backup during outages
• Expandable to 48kW & configurable for three-phase systems
• Removable LCD display with detailed real-time & historical data
• Customisable RGB light bar for instant system status
• Built-in Wi-Fi monitoring with app support & optional online portal
• Generator auto-start & predictive multi-fan cooling
• Ideal for large homes, workshops, commercial sites & off-grid installations

Inverter Specifications

• Nominal battery voltage: 48V
• Continuous power output: 8000W/8000VA (220-240V AC)
• Surge power: 16000VA
• Output frequency: 50/60Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 4000W per input (8000W total)
• Maximum solar input current: 18A per input
• Maximum open circuit solar input voltage: 500V (open circuit)
• PV start up voltage: 80V +/- 5V
• MPPT solar operating voltage: 90V - 450V
• Maximum solar charging current: 120A
• Maximum mains AC charging current: 120A
• Maximum combined charging current: 120A
• Peak efficiency: 93%
• Operating temperature: -10°C to 50°C
• Supplied with solar connectors, cable glands, PC connection cable & PC software CD
• Size: 147.4mm x 432.5mm x 553.6mm
• Weight: 18.4kg

Code: IC-MX8000-48
