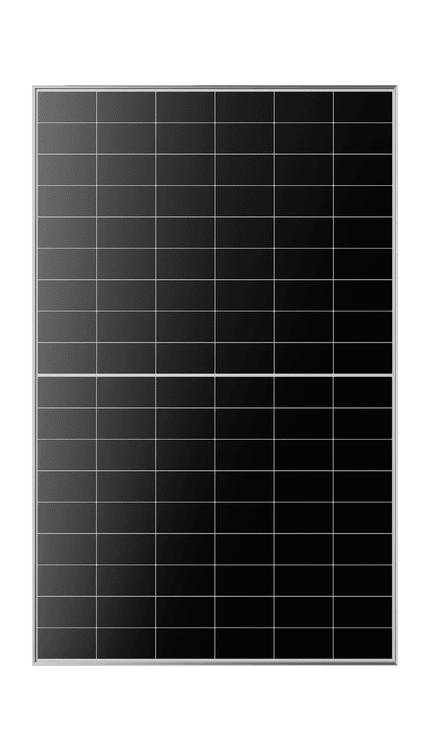

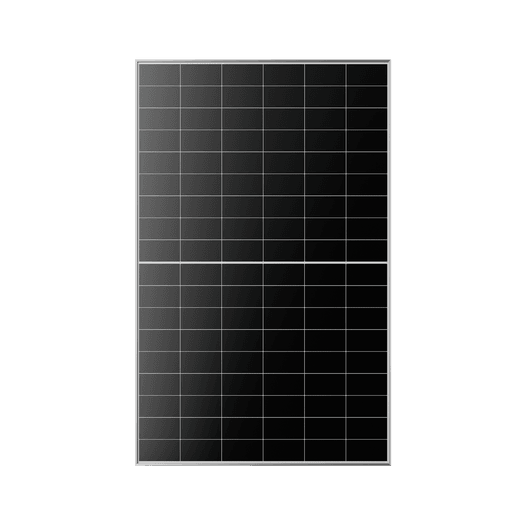

The LONGi Solar 485W Hi-MO X10 Dual Glass HPBC+ N-type Mono Solar Module is built for installers who need a high-performance panel with the added strength and longevity benefits of dual-glass construction. Part of the LR7-54HVD Hi-MO X10 range, this module combines N-type TaiRay wafer technology, HPBC2.0 cell architecture and an innovative 0BB structure to support high energy generation and improved long-term reliability.
At STC, the 485W model delivers a maximum power output of 485W with a module efficiency of 23.8%. Its key electrical values include a maximum power voltage of 33.62V, maximum power current of 14.43A, open-circuit voltage of 40.64V and short-circuit current of 15.08A. Under NOCT conditions, the module is rated at 369W.
The module uses double-glass construction with 2.0mm coated tempered glass and 1.6mm semi-tempered glass, paired with a black anodised aluminium alloy frame. This provides a durable build while maintaining a clean, modern appearance for rooftop and commercial installations. The module is fitted with an IP68 junction box with three diodes and uses 4mm² output cable. It measures 1800 x 1134 x 30mm and weighs 23.5kg.
For system design, the module is rated for a maximum system voltage of 1500V DC, a maximum series fuse rating of 30A and an operating temperature range of -40°C to +85°C. It also offers 70±5% bifaciality, Class II protection and an IEC Class C fire rating. Mechanical ratings include 5400Pa front-side maximum static loading, 2400Pa rear-side maximum static loading and hailstone testing with 25mm hailstones at 23m/s.
LONGi supports the Hi-MO X10 dual-glass range with a 15-year warranty for materials and processing and a 30-year warranty for extra linear power output. The warranty chart on page 2 shows less than 1% first-year degradation, 0.35% annual degradation and 88.85% retained power output at year 30.
Code: LR7-54HVD-485M
