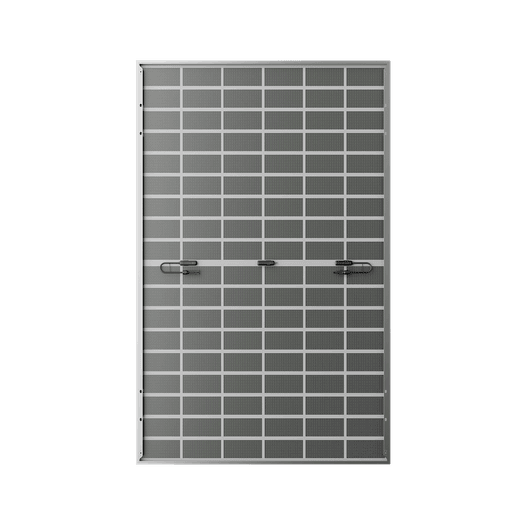

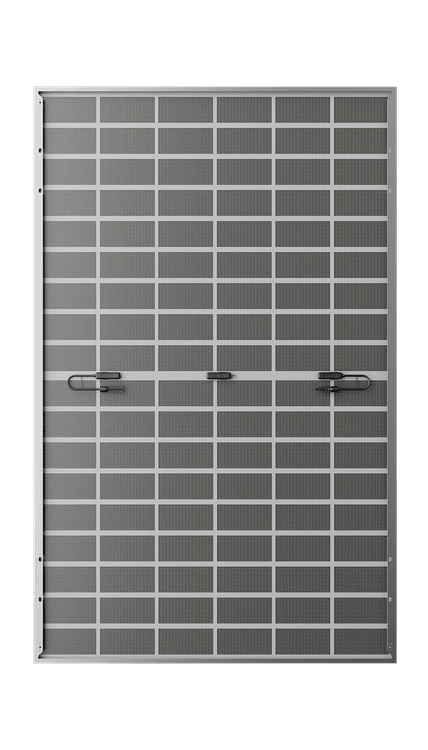

LONGi Solar 540W Hi-MoX10 HPBC + N-type Mono Solar Module (LR7-60HVH-540M) is a high-efficiency, high-output module designed to help installers get more energy from limited roof space while simplifying string design and installation. With a rated output of 540W and a module efficiency of around 23.9%, this Hi-MO X10 module delivers exceptional power density in a compact, installer-friendly format.
Built on LONGi’s TaiRay wafer and high-performance back-contact (HPBC) N-type cell technology, the LR7-60HVH-540M is engineered for strong energy yield and long-term reliability. N-type cells typically offer lower degradation and excellent performance under real-world conditions, helping end customers maximise lifetime kWh from each string and giving installers confidence when designing long-lasting systems. The module operates at a maximum system voltage of 1500V DC, with a 25A maximum series fuse rating, supporting modern high-voltage string designs for residential and commercial rooftops.
Mechanical design is optimised for rooftop deployment. The module measures 1990 × 1134 × 30 mm and weighs 25.3 kg, fitting well within common rail and clamp systems while keeping handling manageable for site teams. It uses 120 (6×20) mono cells, 3.2 mm coated tempered glass and an anodised aluminium alloy frame, combining robustness with clean aesthetics.This makes it a good match for both residential installations where appearance matters and commercial projects where packing maximum power onto the roof is the priority.Reliability is backed by strong certifications and testing. The LR7-60HVH series is certified to IEC 61215, IEC 61730 and UL 61730, with LONGi operating under ISO 9001, ISO 14001 and ISO 45001 management systems.The module is tested to withstand up to 5400 Pa front-side and 2400 Pa rear-side static loading, and hail impact from 25 mm hailstones at 23 m/s, giving peace of mind on exposed UK and EU sites.For long-term performance, the LR7-60HVH-540M offers a 15-year warranty for materials and processing and a 30-year extra linear power output warranty. First-year power degradation is less than 1%, followed by a maximum annual degradation of 0.35%, with at least 88.85% of the initial rated output still guaranteed at year 30.
Code: LR7-60HVH 535-560W
