Tesla designs sustainable systems that are massively scalable, resulting in the greatest environmental benefit possible. Their energy generation and storage products work together with their electric vehicles to amplify their impact.

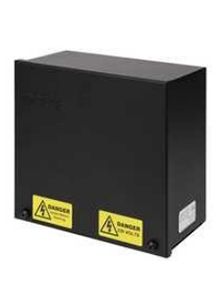

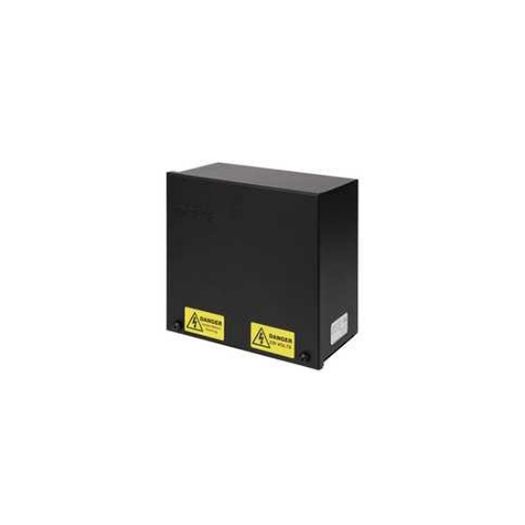

The Tesla Matt:e Single-Phase EV Monitoring & PEN Fault Protection Unit is a dedicated, safe, compliant and cost-effective EV connection centre that connects a single-phase electric vehicle charge point to an existing PME earthing system. Incorporating advanced built-in matt:e technology, this unit provides integrated PEN fault protection that detects open PEN conductor faults and automatically disconnects the charging circuit when required. This removes the need for separate earth rods or measuring electrodes in typical PME-connected EV charging installations while helping installers meet current electrical installation requirements.
Made specifically for residential installations, the SP-EVCP-T-W allows the connection of a single 32A EV charge point directly to a PME earthing facility. In the event of a PEN fault, the unit's intelligent monitoring system automatically disconnects all poles, including the CPC, helping to protect both users and connected equipment. By removing the requirement for earth electrodes, installers can significantly reduce labour time, costly groundworks and the risk of striking buried services during installation.
The unit features a simple wire-in, wire-out connection design for quick and straightforward installation. Housed within a robust mild steel IP2X enclosure, it offers reliable protection and long-term durability for domestic EV charging applications. Optional load management functionality is available via a hard-wired CT connection, providing greater control over electrical demand where required.
Technical Specifications:
Please Note: This unit is designed for residential applications with a single-phase PME power supply and is not suitable for three-phase installations.
Warranty: Guaranteed for a period of 3 years from the date of purchase. This warranty is limited to the replacement of faulty components only.
Code: MATT-SP-EVCP-T-W
