Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

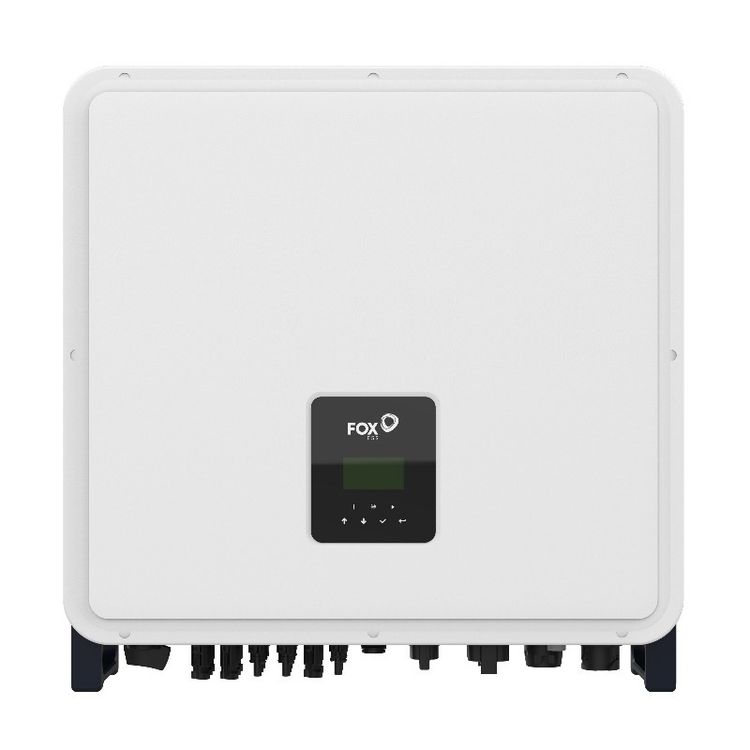

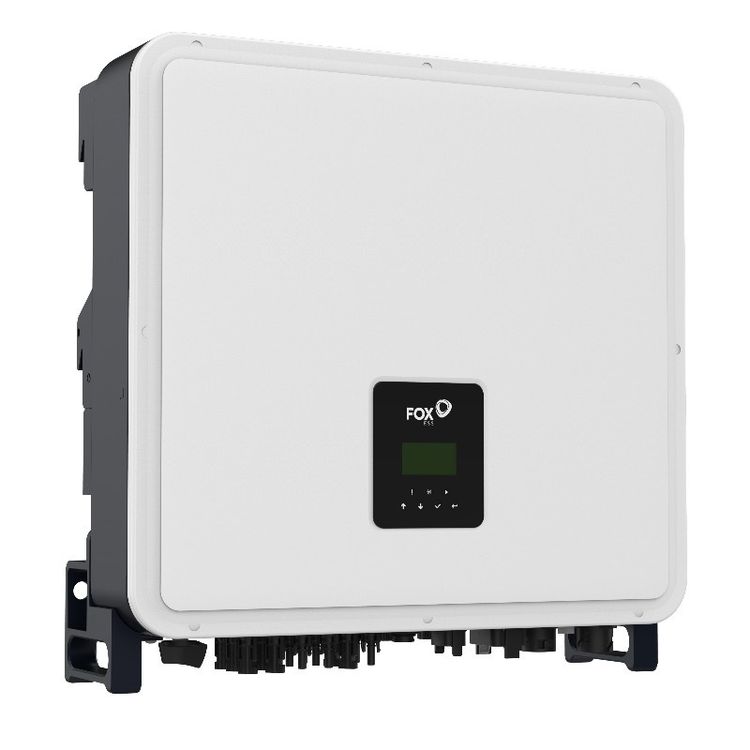

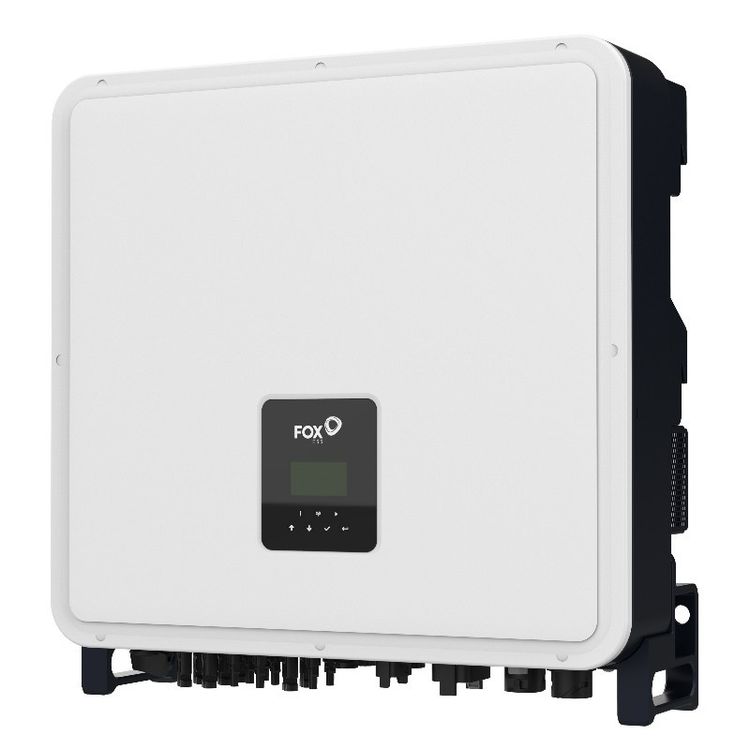

The Fox ESS H3 Pro 20kW Three-Phase Hybrid Inverter converts electricity from solar panels into power for appliances and equipment in your home or business. Surplus solar electricity can be exported to the grid or stored in compatible Fox ESS high-voltage batteries for use after sunset or when your panels are producing less power. Configurable operating modes include self-use, feed-in priority and backup, with scheduled battery charging available to suit your energy requirements.
The H3-Pro-20.0 provides 20,000VA of nominal AC output and supports solar arrays up to 40,000Wp. Three independent MPPT trackers, each supporting two solar strings, give installers flexibility when arranging panels across different roof orientations. Maximum efficiency reaches 97.2%, while PV-to-battery efficiency reaches 98.1%. Two battery inputs support compatible lithium battery systems within a 150–800V operating range, with maximum charging and discharging currents of 50A per input.
FoxCloud V2.0 supports remote monitoring through an app or web portal when suitable connectivity is configured. With compatible batteries and correctly installed backup circuits, the EPS output supplies up to 20,000VA during a power cut, with a peak rating of 24,000VA for 60 seconds. An IP65-rated enclosure, smart fan cooling and Type II surge protection on both the AC and DC sides complete the wall-mounted design.
What’s In The Box: 1x Inverter, 1x Mounting Bracket, 12x PV Connectors (6x Positive, 6x Negative), 12x PV Pin Contacts (6x Positive, 6x Negative), 1x EPS AC Connector, 1x Grid AC Connector, 4x Expansion Tubes, 4x Expansion Screws, 1x Earth Terminal, 1x Quick Installation Guide, 1x Meter, 1x M4 x 16 Hexagonal Screw, 4x Battery Connectors (2x Positive, 2x Negative), 4x Battery Pin Contacts (2x Positive, 2x Negative), 1x M5 x 10 Grounding Screw, 1x COM1 12-Pin Connector, 1x COM2 24-Pin Connector, 1x Grid Connector Outer Snap Mechanical Lock.
Code: H3-Pro-20.0
