Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

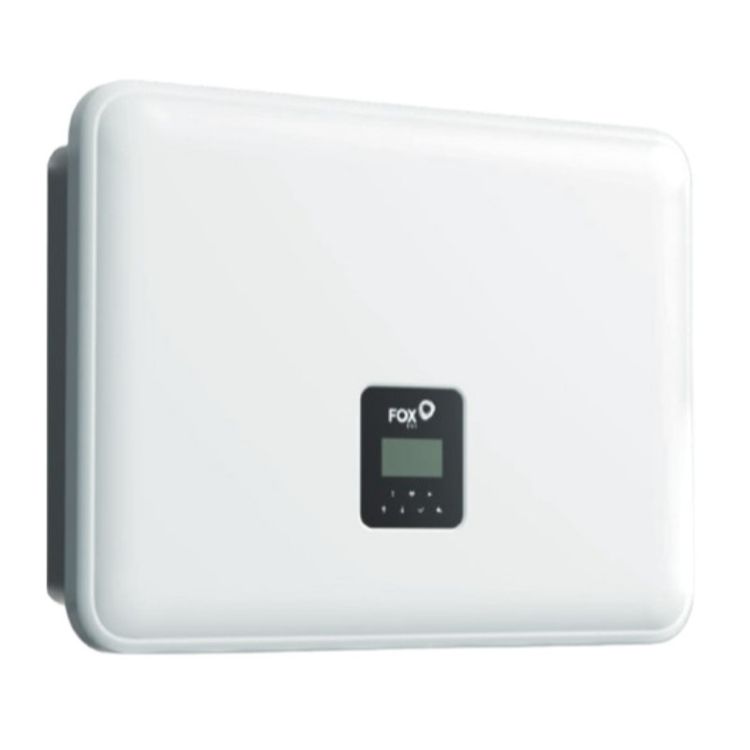

The Fox ESS H3 Smart 10kW Three-Phase Hybrid Inverter combines solar power conversion with compatible battery storage to give properties with a three-phase supply greater control over electricity use. Delivering 10,000W of nominal AC output, it allows surplus solar energy to be stored in a high-voltage battery for use after sunset or when electricity demand rises. Self-use, feed-in priority and backup modes, alongside scheduled battery charging, provide flexibility to manage energy around the property's requirements.
The H3-10.0-Smart supports solar arrays up to 20,000Wp and a maximum DC input power of 18,000W. Three independent MPPT trackers, each accommodating one solar string, help optimise generation across different roof orientations. Maximum conversion efficiency reaches 97.9%, with MPPT efficiency of 99.9%. Compatible high-voltage LFP batteries operating between 100V and 800V are supported, with charging and discharging currents of up to 50A.
Download the FoxCloud V2.0 app to monitor system performance remotely once the inverter is connected to your network. Integrated Wi-Fi and LAN connectivity provide convenient monitoring options, with 4G available as an optional alternative.
What's In The Box: 1x inverter, 1x mounting bracket, 6x PV connectors (3 positive & 3 negative), 6x PV pin contacts (3 positive & 3 negative), 1x AC connector, 6x expansion tubes, 6x expansion screws, 1x earth terminal, 1x communication connector, 1x quick installation guide, 1x three-phase meter (listed as <80A), 3x hexagonal screws, 2x battery connectors (1 positive & 1 negative), 2x battery pin contacts (1 positive & 1 negative), 4x Ethernet cable terminals, 1x antenna.
Code: H3-10.0-Smart
