With a focus on performance, reliability and simplicity, InstaGen products are designed for seamless installation and long-term durability, backed by strong warranties and UK-based expertise.

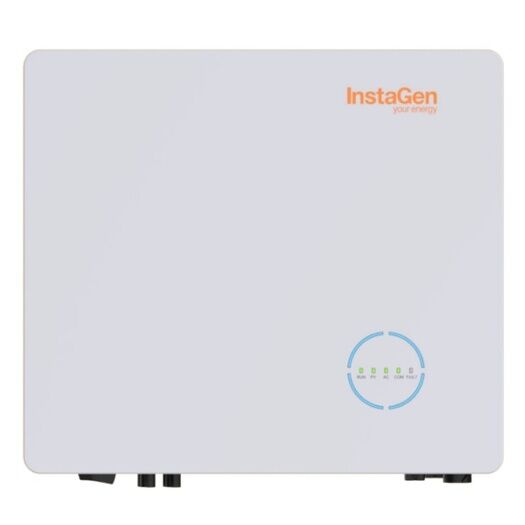

Deliver smarter, cleaner energy to your home with the InstaGen 3.68 kW Hybrid Inverter, a high-performance, future-ready solution that expertly blends solar generation, battery storage, and intelligent energy management in one sleek package.
Outstanding Hybrid Performance
With a maximum AC output of 3.68 kW, this inverter delivers strong power handling for residential applications, while supporting both DC-coupled and AC-coupled systems. It boasts up to 97.6% peak efficiency for optimized energy conversion.
Flexible Solar Input Capacity
Capable of handling up to 6 kW of PV input, it supports over‑sizing of solar arrays (up to 150% DC/AC ratio), ensuring optimal energy yield even under variable sun conditions.
Dual MPPT Trackers for Enhanced Harvesting
Equipped with two independent MPPTs, the inverter tracks maximum power points across diverse string configurations, with input voltage ranging from 125 to 500 V and a start-up voltage as low as 150 V.
Robust Build for Indoor or Outdoor Use
Encased in a IP65-rated enclosure and weighing approximately 25 kg, this inverter is built to withstand a variety of environments—ideal for both indoor utility rooms and sheltered outdoor areas.
Intelligent Energy Management Modes
Integrated EMS supports multiple operating modes—Self‑Consumption, Economic, and Backup—tailored to your energy needs. Paired with cloud-connected remote monitoring, you can diagnose, optimize, and maximize system performance in real-time.
Advanced Monitoring & Connectivity
Seamlessly integrates with home ESPs and smart meters using RS485, CAN, Wi-Fi, Ethernet, or optional 4G connectivity. Cloud-based access empowers you to monitor energy trends and system health from anywhere.
Battery Compatibility & Smart Backup
Designed to work with 48 V LiFePO₄ InstaGen batteries, providing reliable energy backup during outages. Includes built-in protections such as dry contact interfacing for isolating earth faults, load control, or generator integration.
Certified Safety & Warranty Assurance
Rigorous certifications under a range of standards (including CE, UKCA, IEC 62109, VDE‑AR‑N 4105, EN 61000‑6‑1/‑6‑3) ensure dependable and compliant operation. Backed by a 10-year product warranty for peace of mind.
| Specification | Details |
|---|---|
| AC Output Power | 3,680 W |
| Peak Efficiency | 97.6% (up to) |
| DC Input Capacity | Up to 6 kW (supports 150% DC/AC ratio) |
| MPPT Count | 2 independent trackers |
| MPPT Voltage Range | 125–500 V (start-up at 150 V) |
| Protection Rating | IP65 enclosure—suitable for indoor/outdoor use |
| Weight | Approximately 25 kg |
| EMS Modes | Self‑Consumption, Economic, Backup |
| Connectivity Interfaces | RS485, CAN, Wi‑Fi, Ethernet, optional 4G |
| Battery Integration | Compatible with 48 V LiFePO₄ InstaGen batteries |
| Protocols | Dry contact, smart load control, generator control |
| Compliance & Warranty | CE, UKCA, IEC safety & EMC standards; 10‑year warranty |
