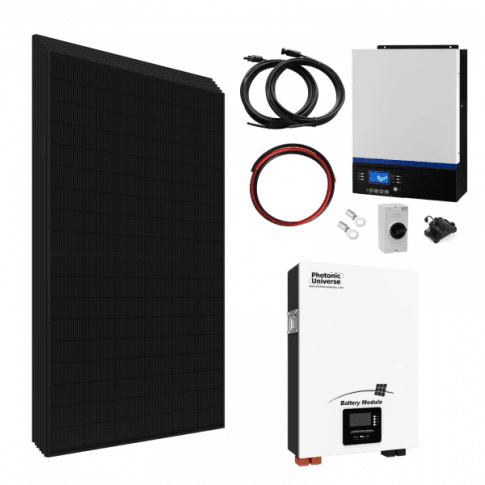

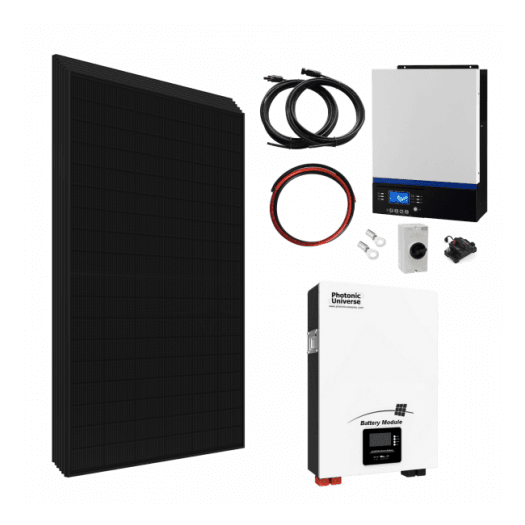

The Photonic Universe Complete 5kW Off-Grid Solar Power System, 6x 430W Solar Panels, 5kW Hybrid Inverter & 5kWh Battery is a complete renewable energy solution that provides dependable off-grid electricity for homes, workshops, cabins, agricultural buildings, mobile businesses and other locations where mains power is unavailable or unreliable. Combining high-quality components into one carefully matched system, this kit delivers reliable performance for everyday appliances, backup power and sustainable off-grid living.

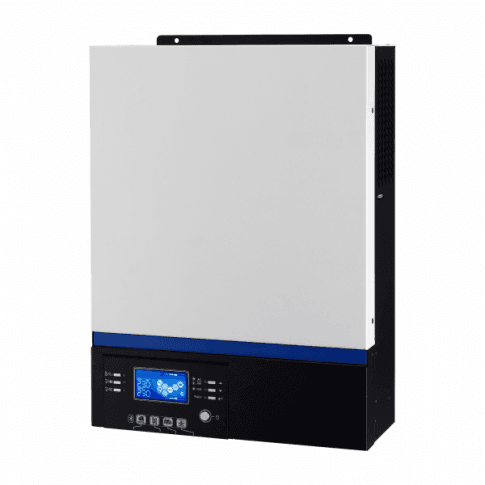

At the heart of the system is a powerful 5kW 48V Iconica Hybrid Inverter, intelligently combining a pure sine wave inverter, high-efficiency 80A MPPT solar charge controller and 60A smart battery charger within a single unit. This all-in-one design simplifies installation while providing efficient solar energy management, battery charging and AC power conversion. The inverter also features an integrated UPS function and can intelligently manage power from solar panels, batteries, mains electricity or a generator to ensure continuous power whenever it is needed.

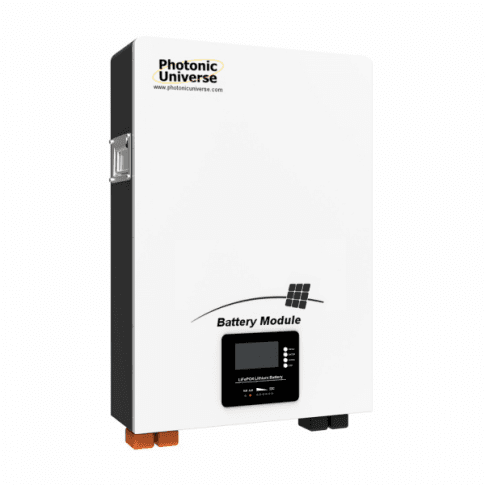

Energy is stored within a 100Ah 48V Photonic Universe wall-mounted LiFePO₄ battery, providing approximately 5.12kWh of usable storage for reliable day and night operation. Its advanced Battery Management System continuously monitors voltage, current and temperature while protecting against overcharging, over-discharging and excessive temperatures to maximise both safety and battery lifespan.
The included solar array consists of six Sharp NU-JC430B 430W Full Black Monocrystalline Solar Panels, delivering approximately 2.6kW of renewable generating capacity. Featuring advanced TOPCon cell technology, these premium panels provide excellent performance in bright sunshine, high temperatures, low light and partially shaded conditions.
Once installed, the inverter can be monitored locally using the supplied PC software or upgraded with the optional WiFi communication kit for convenient remote monitoring and email status notifications.

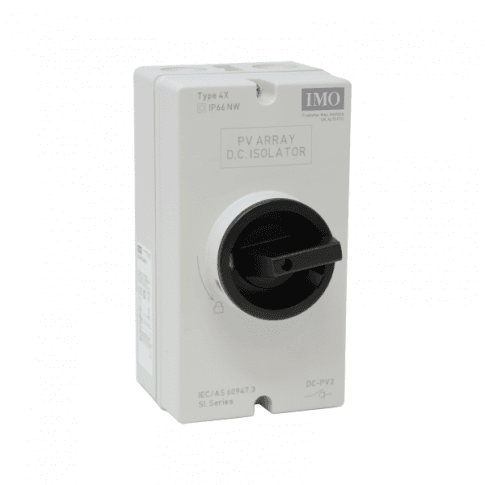

What's Included: 6x Sharp NU-JC430B 430W Full Black Monocrystalline Solar Panels, 5000W 48V Iconica Hybrid Inverter, 100Ah 48V Photonic Universe Wall-Mounted LiFePO₄ Battery, 120A Fuse or Circuit Breaker, Pair of 10m 6mm² MC4 Solar Extension Cables, 1m Red 35mm² Tinned Copper Battery Cable, 1m Black 35mm² Tinned Copper Battery Cable, IMO 16A Two-Pole DC Isolator Switch, Battery Linking Cable and Loose Ring Terminals.
Solar Panel Specifications (per solar panel):
Hybrid Inverter Specifications:
Battery Specifications:
Code: KIT2-5K
