Fox ESS products are engineered for reliability, scalability, and ease of use, offering customers flexible solutions that fit diverse energy needs while maximising self-consumption and cost savings.

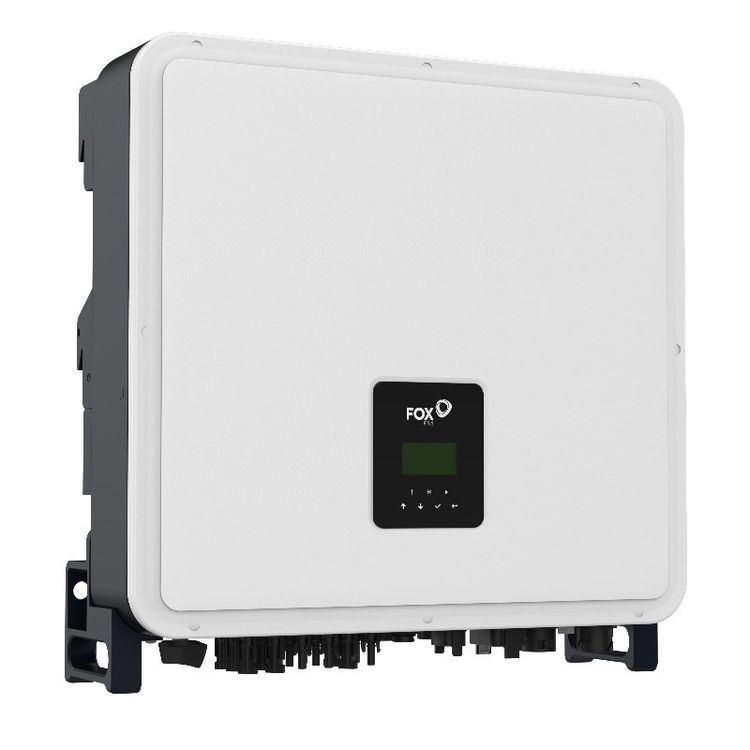

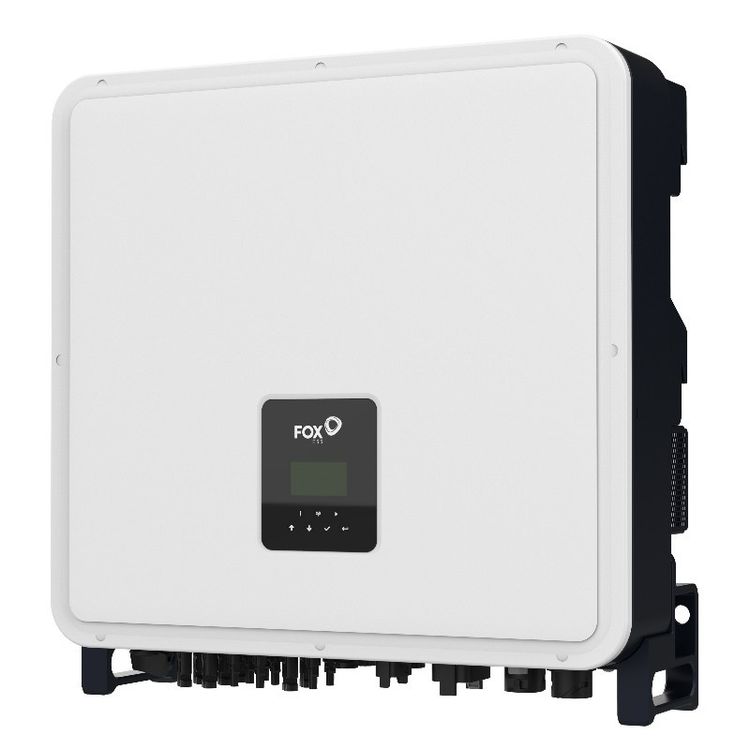

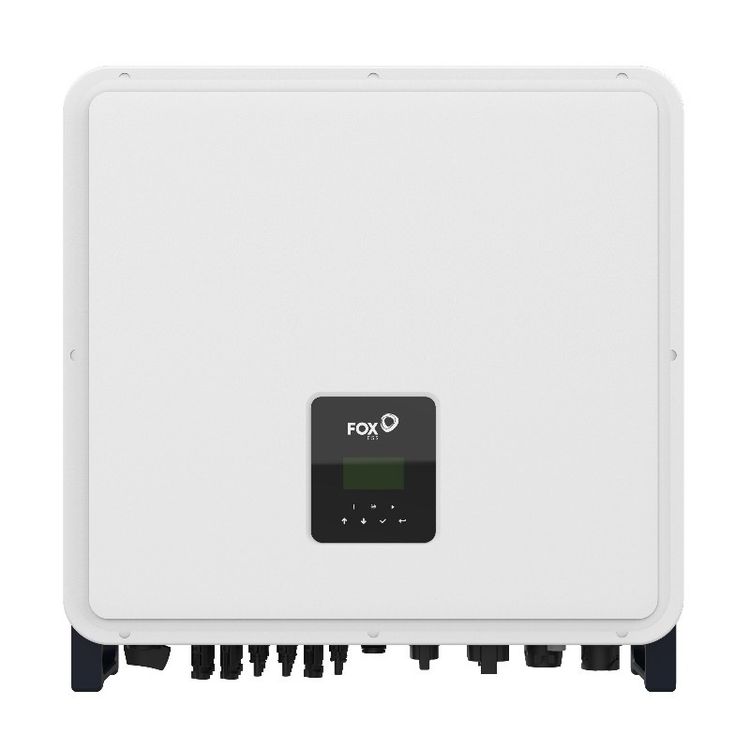

The Fox ESS H3 Pro 30kW Three-Phase Hybrid Inverter combines solar generation and compatible battery storage to give properties with a three-phase electricity supply greater control over energy use. By storing surplus solar electricity for later, it helps increase self-consumption and reduce reliance on grid power. Self-use, feed-in priority and backup modes, alongside scheduled battery charging, allow operation to be tailored to the site's energy requirements.
Delivering 30,000VA of nominal AC output, the H3-Pro-30.0 supports solar arrays up to 60,000Wp. Three independent MPPT trackers accommodate two strings each, with a maximum recommended PV input power of 15,000W per tracker. This provides flexibility when configuring larger solar installations across different roof orientations. Maximum conversion efficiency reaches 97.1%, while PV-to-battery charging efficiency reaches 98.1%. Two battery inputs support compatible high-voltage lithium batteries operating between 150V and 800V, with charging and discharging currents of up to 50A per input.
Download the FoxCloud V2.0 app to monitor system performance remotely through a compatible communications module. An integrated LCD and touch controls provide access to operating information directly at the inverter.
What's In The Box: 1x inverter, 1x mounting bracket, 12x PV connectors (6 positive & 6 negative), 12x PV pin contacts (6 positive & 6 negative), 1x EPS AC connector, 1x grid AC connector, 4x expansion tubes & expansion screws, 1x earth terminal, 1x quick installation guide, 1x meter, 1x M4x16 hexagonal screw, 4x battery connectors (2 positive & 2 negative), 4x battery pin contacts (2 positive & 2 negative), 1x M5x10 hexagonal grounding screw, 1x COM1 12-pin connector, 1x COM2 24-pin connector, 1x grid outer snap mechanical lock.
Code: H3-Pro-30.0
