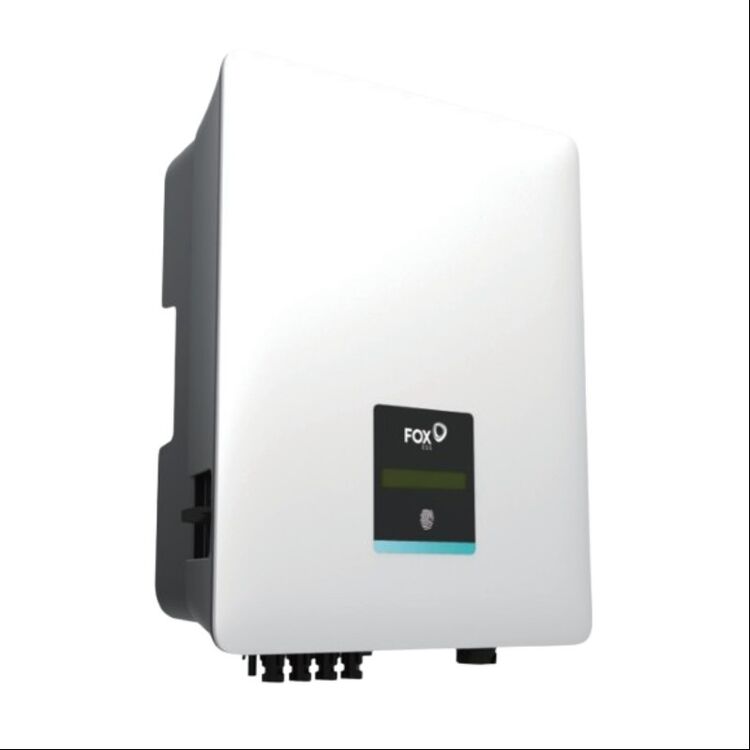

5 kW • 10 kW • 15 kW • 20 kW • 25 kW — 3‑Phase, Dual‑MPPT, IP65
Tailored for high-demand residential and small‑scale commercial solar systems, the T Series (G3) brings exceptional efficiency, flexible design, and durable performance to your power infrastructure.
Outstanding Efficiency
Achieves up to 98.6 % maximum efficiency, ensuring minimal energy waste and optimal system performance. MPPT tracking operates at around 99 % efficiency.
Robust MPPT & Voltage Range
Equipped with 2 independent MPPTs, each handling 1–2 strings, across a broad 140–1000 V DC input range—extending generation opportunities, especially during low-light conditions.
Low Start-Up Voltage
Starts generating at just 140 V, giving extended generation windows throughout the day.
Industrial‑Grade Build
Rated IP65, suitable for indoor or outdoor installation. Uses natural cooling for a silent, maintenance-free service life.
Smart Monitoring & Future‑Proof Design
Supports remote monitoring via smartphone app or web portal, plus options for RS485 and logging dongles. Ready for seamless integration with Fox ESS battery systems in the future.
Installer-Friendly
Compact and lightweight construction ensures effortless installation, lowering labour time and complexity.
Warranty Assurance
Comes with a 5-year standard warranty, extendable to 10 years upon online registration.
Rated Power: 5,000 W (three-phase)
Max Efficiency: 98.6%
MPPT: Dual trackers, 140–1000 V range, 140 V start‑up
Protection & Monitoring: IP65, natural cooling, remote control via Wi‑Fi dongle, includes LCD display and plug-and-play setup.
Rated Power: 10,000 W
Start-Up / Input Specs: Same as T5‑G3 with 140 V start‑up and 1100 V max input
Features: Strong efficiency, dual‑MPPT flexibility, IP65, compact design, optional integrated DC switch.
Rated Power: 15,000 W
Design: Supports up to 2 MPPTs, integrated DC switch, high AC surge capacity, flexible inputs.
Rated Power: 20,000 W
Robust Build: Handles up to 30 kW DC input, IP65 rated, dual MPPT setup.
Rated Power: 25,000 W
Performance: Offers 98.6 % efficiency, wide voltage range (140–1000 V), low‑startup voltage, IP65, future‑ready battery upgrade path.
| Model | Rated Power | Max Efficiency | MPPT | Stand‑Out Feature |
|---|---|---|---|---|
| T5‑G3 | 5 kW | 98.6% | 2 | Compact with Wi‑Fi and LCD display |
| T10‑G3 | 10 kW | 98.6% | 2 | Higher capacity, integrated DC switch |
| T15‑G3 | 15 kW | 98.6% | 2 | AC surge ready, dual MPPT optimisation |
| T20‑G3 | 20 kW | 98.6% | 2 | Heavy-duty inputs, dual MPPT flexibility |
| T25‑G3 | 25 kW | 98.6% | 2 | Highest output, future battery‑ready |
